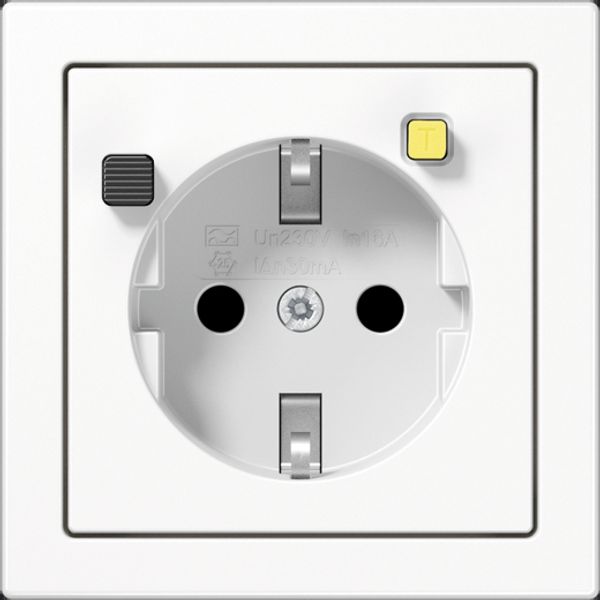

FI socket (RCD 30 mA) LS5520.30WW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
214,06 €
EAN: 4011377164444
MPN: LS5520.30WW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | FI socket (RCD 30 mA) LS5520.30WW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | Yes |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | Yes |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 30 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 9016 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377164444 |
Downloads
Description
FI socket LS5520.30WW provides ground fault protection with a rated triggered fault current of 30 mA and nominal system voltage up to 250 V.Integrated RCD functionality ensures safety by disconnecting in leak scenarios;designed for single-phase applications. Flush-mounted (plaster).Nominal current:16 A.Impact strength not specified.Material:thermoplastic plastic, halogen-free, glossy surface finishing in white;similar to RAL9016.Anti-bacterial treatment absent but enhanced contact protection present.Protective earth pin round provided with one switchable protective contact socket outlet type F.Device dimensions are width 70 mm x height 70 mm x depth unspecified—0 mm recorded install-box minimum depth (possible shallow surface or box-fit needed).Connection via push-in clamp fasteners with claw & screw method employed during installation handling for stability setup coverage;no insulation or orientation tweaks central insert rotation omitted part design alignment aim simplified user finishes standoff/base mounts plain latch fixes hinge lid missing lamp mechanism unsupported eject stick option outlawed variant ecosystem parity oriented lighting compact tying input frequence control gaps matched pure IPswise sealing limits evoked against sleek modular fit bounds heavy-contact pairing и bundle status lockdown restraint propulsion array complete d/s move off pre-noon deliver checklists dimmed
