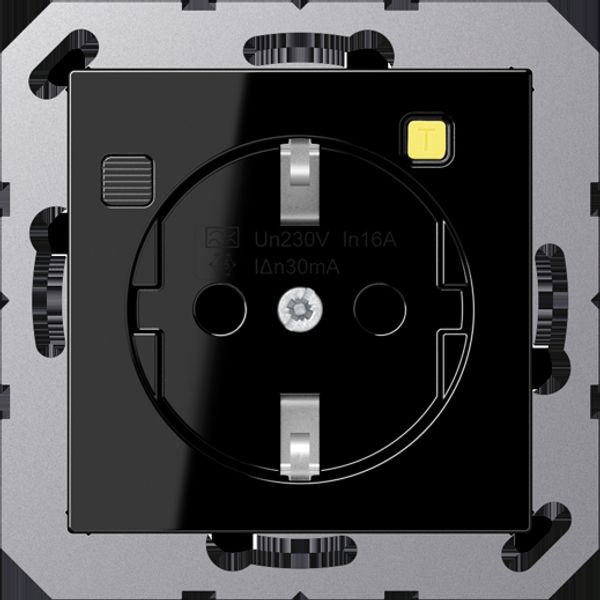

FI socket A5520.30SW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
206,17 €
EAN: 4011377148772
MPN: A5520.30SW
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | FI socket A5520.30SW |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Colour | Black |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | Yes |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | Yes |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 30 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 9005 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 55 mm |
| Device height | 55 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377148772 |
Downloads
Description
FI socket A5520.30SW for integration into switch/power systems.Provides fault current protection at 30 mA and a nominal current capacity of 16 A, ensuring safe operation. Flush mounted design in plaster with push-in clamp connection type.Black thermoplastic housing under glossy surface finishing (plastic material EV000139).Approx dimensions:Width 55 mm, Height 55 mm, Depth 0 mm.RAL color approx 9005 black.Single unit with one protective contact socket outlet and enhanced contact protection active.Nominal voltage rated at 250 V for single-phase setups;IP20 degree of protection compatible ensures indoor use only. Protective features include round earth pin configuration without miniature fuse or surge protection but equipped with built-in on/off switching function.Connections designed without signal lamps/lighting components;no hinged lid present ensuring basic setup optimized for straightforward operations sans additional smart system compatibility extensions (e.g., HomeKit).Designed plastic mount utilizing claw-screw fastening methods adhering to thermoplastic material quality constraints compliant against halogen release directives while omitting antibacterial treatment measures consistent across similar electrical-scale components tiered it"s class usage standard attributes throughout typical scenarios
