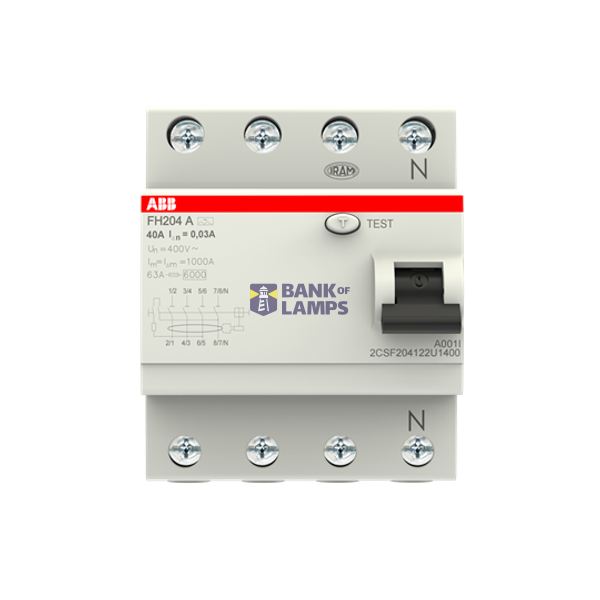

FH204 A-40/0.03 U CEBEC Residual Current Circuit Breaker 4P A type 30 mA
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | FH204 A-40/0.03 U CEBEC Residual Current Circuit Breaker 4P A type 30 mA |
| Brand | ABB |
| Harmonized System Code | 8536 3030 00 |
| ETIM | EC000003 |
| Rated current | 40 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Number of poles | 4 |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 1 kA |
| Surge current capacity | 0.25 kA |
| Short-time delayed tripping | No |
| Frequency | 50 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 8012542940104 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 69 mm |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 10-25 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -5-40 °C |
| Additional equipment possible | No |
Downloads
Description
FH204 A-40/0,03 U CEBEC Residual Current Circuit Breaker
