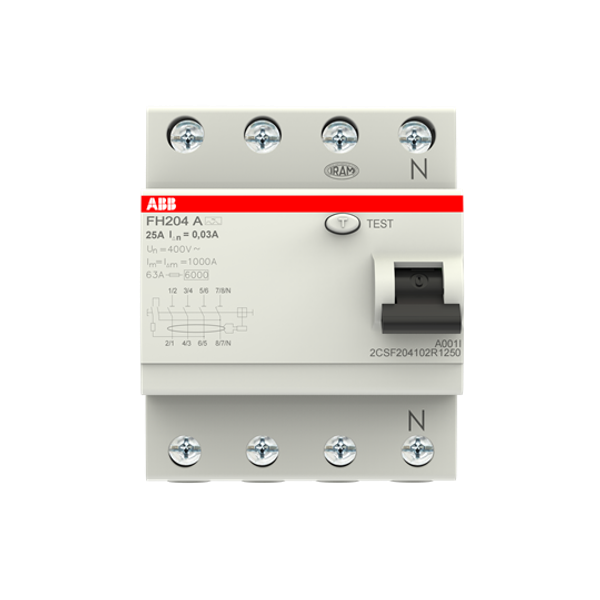

RCCB FH204 A 25A 30mA 4P
In vendor's stock
Price (excl. VAT):
22,66 €
per pcs
EAN: 8012542892700
MPN: 2CSF204102R1250
Package: 1
Box: 5
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RCCB FH204 A 25A 30mA 4P |
| Brand | ABB |
| Categories |
RCCB - (Residual Current Breakers)
|
| Harmonized System Code | 8536 3030 00 |
| Rated current | 25 A |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 0 V |
| Number of poles | 4 |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 1 kA |
| Surge current capacity | 0.25 kA |
| Short-time delayed tripping | No |
| Frequency | 50/60 Hz |
| Rated impulse withstand voltage Uimp | 4 kV |
Packing details
| Packing level 1 | 8012542892700 |
| Packing level 2 | 8012542892717 |
| Packing level 3 | 8012542892700 |
Other Technical data
| Mounting method | DIN rail |
| Built-in depth | 69 mm |
| Pollution degree | 0 |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section multi-wired | 10-25 mm² |
| With interlocking device | Yes |
| Ambient temperature during operating | -5-40 °C |
| Additional equipment possible | No |
Downloads
Description
FH204 A-25/0,03; proudový chránič; čtyřpólový; jmenovitý proud: 25 A; citlivost: 30 mA; Typ A – pro střídavý a pulzující stejnosměrný reziduální proud (určeno pro 1f obvody s usměrňovači)
