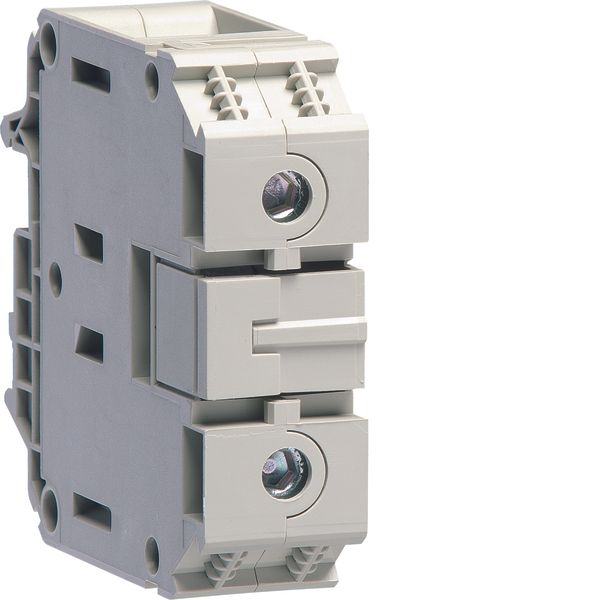

Feed-through terminal-phase , 70mm² image 1
Hager

Feed-through terminal-phase , 70mm²

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
17,663 € per pcs
This price is valid until 31.12.25
EAN: 3250613941987
MPN: KXB70LH
Package: 1
Box: 20
Pallet: 10000
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Feed-through terminal-phase , 70mm²
Brand Hager
Categories DIN Rail Terminal Blocks
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 230 V
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Rated current In 192 A

Packing details

Packing level 1 3250613941987
Packing level 2 3250613941987
Packing level 3 3250613941987

Other Technical data

Colour Grey
Width 76.8 mm
Height 81.2 mm
Depth 24 mm
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Feed-through terminal-phase ,70mm² , 1000V/192A, screw connection
