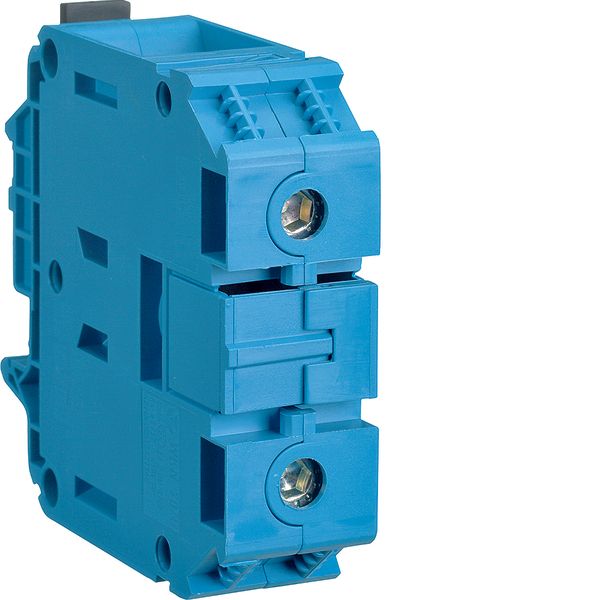

Feed-through terminal-N, 70mm² image 1
Hager

Feed-through terminal-N, 70mm²

Order only Minimal order quantity: 10
Price (excl. VAT):
15,47 € per pcs
This price is valid until next price list or while stock lasts
Subtotal: 154,70 € MOQ: 10
EAN: 3250613942212
MPN: KXB70NH
Package: 1
Box: 20
Pallet: 1440
Estimate delivery time to our warehouse: 4-6 weeks

Technical Information

Item condition New
Manufacture name Feed-through terminal-N, 70mm²
Brand Hager
Categories DIN Rail Terminal Blocks
Harmonized System Code 8536 9010 00
ETIM EC000897
Mounting method Other
Rated voltage 230 V
Rated current In 179 A

Packing details

Packing level 1 3250613942212
Packing level 2 3250613942212
Packing level 3 3250613942212

Other Technical data

Colour Blue
Width 96 mm
Height 98.6 mm
Depth 24 mm
Inflammability class of insulation material according to with UL94 V0
Closing plate required No
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Feed-through terminal-neutral, 70mm², 1000V/192A, screw connection
