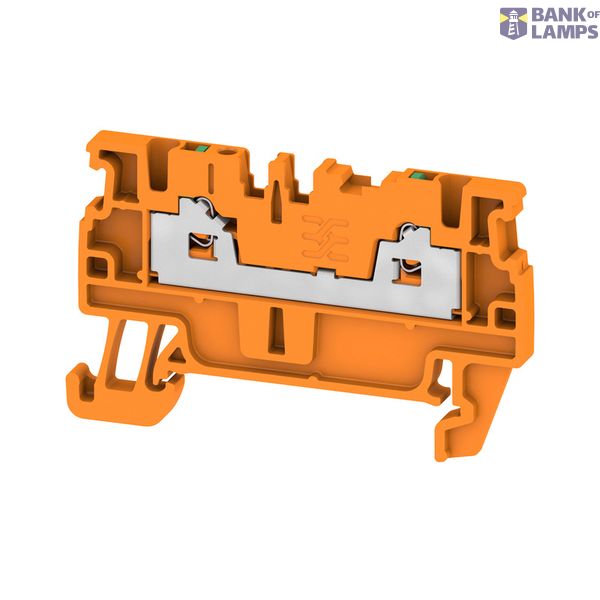

Feed-through terminal block, SNAP IN, orange, 1.5 mm², 17.5 A, 500 V, image 1
Weidmüller

Feed-through terminal block, SNAP IN, orange, 1.5 mm², 17.5 A, 500 V,

Order only
Price (excl. VAT):
Price by request
This price is valid while stock lasts
EAN: 4099986851900
MPN: 2986560000
Package: 1
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Feed-through terminal block, SNAP IN, orange, 1.5 mm², 17.5 A, 500 V,
Brand Weidmüller
Categories DIN Rail Terminal Blocks
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 9010 00
ETIM EC000897
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 500 V
Type of electrical connection 1 Other
Type of electrical connection 2 Other
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.25-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.34-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.34-1.5 mm²
Connectable conductor cross section multi-wired 0.25-1.5 mm²
Rated current In 17.5 A

Packing details

Packing level 1 4099986851900, 4099986851900

Other Technical data

Colour Orange
Width 3.5 mm
Height 55 mm
Depth 33.5 mm
Operating temperature -60-130 °C
Closing plate required Yes
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.

Accessories

Order only

Weidmüller Plug (terminal), Plug-in connection, 2 mm², Number of connections: 2, Number of poles: 1, Width: 9 mm

9,40 €
This price is valid until next price list or while stock lasts
Subtotal: 188,00 € MOQ: 20
EAN: 4008190026080
MPN: 1276300000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller End plate AEP 2C 1.5 for terminal blocks

0,275 €
This price is valid until next price list or while stock lasts
Subtotal: 13,75 € MOQ: 50
EAN: 4050118359602
MPN: 1552600000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller End plate (terminals), 52.76 mm x 2.1 mm, blue

0,275 €
This price is valid until next price list or while stock lasts
Subtotal: 13,75 € MOQ: 50
EAN: 4050118359701
MPN: 1552610000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
In vendor's stock

Weidmüller Cross-connector (terminal), Plugged, orange, 17.5 A, Number of poles: 2, Pitch in mm (P): 3.50, Insulated: Yes, Width: 5.5 mm

0,283 €
This price is valid until next price list or while stock lasts
Subtotal: 16,98 € MOQ: 60
EAN: 4050118369861
MPN: 1985410000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller Cross-connector (terminal), Plugged, orange, 17.5 A, Number of poles: 5, Pitch in mm (P): 3.50, Insulated: Yes, Width: 16 mm

0,99 €
This price is valid until next price list or while stock lasts
Subtotal: 19,80 € MOQ: 20
EAN: 4050118369991
MPN: 1985500000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
In vendor's stock

Weidmüller Cross-connector (terminal), Plugged, orange, 17.5 A, Number of poles: 3, Pitch in mm (P): 3.50, Insulated: Yes, Width: 9 mm

0,50 €
This price is valid until next price list or while stock lasts
Subtotal: 30,00 € MOQ: 60
EAN: 4050118370096
MPN: 1985480000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller Cross-connector (terminal), Plugged, orange, 17.5 A, Number of poles: 6, Pitch in mm (P): 3.50, Insulated: Yes, Width: 19.5 mm

1,26 €
This price is valid until next price list or while stock lasts
Subtotal: 25,20 € MOQ: 20
EAN: 4050118370188
MPN: 1985510000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller Cross-connector (terminal), Plugged, orange, 17.5 A, Number of poles: 7, Pitch in mm (P): 3.50, Insulated: Yes, Width: 23 mm

1,52 €
This price is valid until next price list or while stock lasts
Subtotal: 30,40 € MOQ: 20
EAN: 4050118370195
MPN: 1985520000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller Cross-connector (terminal), Plugged, orange, 17.5 A, Number of poles: 4, Pitch in mm (P): 3.50, Insulated: Yes, Width: 12.5 mm

0,76 €
This price is valid until next price list or while stock lasts
Subtotal: 45,60 € MOQ: 60
EAN: 4050118370201
MPN: 1985490000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
Order only

Weidmüller Cross-connector (terminal), Plugged, blue, 17.5 A, Number of poles: 2, Pitch in mm (P): 3.50, Insulated: Yes, Width: 5.5 mm

0,29 €
This price is valid until next price list or while stock lasts
Subtotal: 17,40 € MOQ: 60
EAN: 4050118370423
MPN: 1985530000
Box: 1
Estimate delivery time to our warehouse: 4-6 weeks
