Phoenix Contact

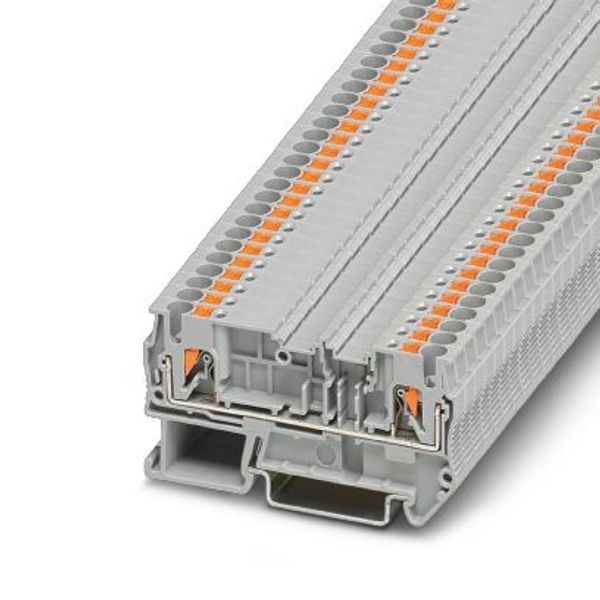

PTC 2,5-TWIN-MTD - Feed-through terminal block

Order only Minimal order quantity: 50
Price (excl. VAT):
0,69 € per pcs
This price is valid until 24.12.25
Subtotal: 34,50 € MOQ: 50
EAN: 4046356997478
MPN: 3270110
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PTC 2,5-TWIN-MTD - Feed-through terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin CN
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 400 V
Type of electrical connection 1 Other
Type of electrical connection 2 Other
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.14-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.14-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.14-2.5 mm²
Rated current In 24 A

Packing details

Packing level 1 4046356997478, 4046356997478

Other Technical data

Colour Grey
Width 5.15 mm
Height 67.83 mm
Depth 35.25 mm
Operating temperature -60-105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Other

Description

Feed-through terminal block, nom. voltage: 400 V, nominal current: 24 A, connection method: Push-in connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
