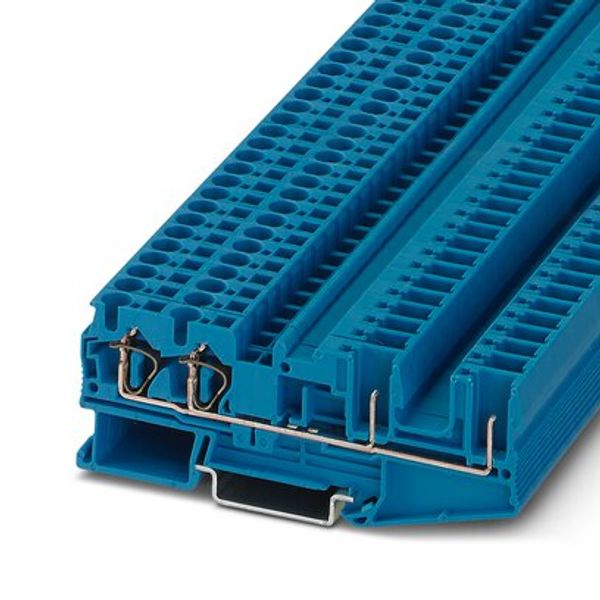

ST 4-QUATTRO/2P BU - Feed-through terminal block image 1
ST 4-QUATTRO/2P BU - Feed-through terminal block image 2
ST 4-QUATTRO/2P BU - Feed-through terminal block image 3
ST 4-QUATTRO/2P BU - Feed-through terminal block thumbnail 1
ST 4-QUATTRO/2P BU - Feed-through terminal block thumbnail 2
ST 4-QUATTRO/2P BU - Feed-through terminal block thumbnail 3
Phoenix Contact

ST 4-QUATTRO/2P BU - Feed-through terminal block

Order only Minimal order quantity: 50
Price (excl. VAT):
1,36 € per pcs
This price is valid until 24.12.25
Subtotal: 68,00 € MOQ: 50
EAN: 4017918956226
MPN: 3042861
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name ST 4-QUATTRO/2P BU - Feed-through terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin PL
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 800 V
Type of electrical connection 1 Spring clamp connection
Type of electrical connection 2 Spring clamp connection
Number of levels 1
Number of clamp positions per level 4
Connectable conductor cross section solid-core 0.08-6 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.14-4 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-4 mm²
Rated current In 32 A

Packing details

Packing level 1 4017918956226, 4017918956226

Other Technical data

Colour Blue
Width 6.15 mm
Height 97.234 mm
Depth 35.25 mm
Operating temperature -60 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Other

Description

Feed-through terminal block, The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used., nom. voltage: 800 V, nominal current: 32 A, connection method: Spring-cage/plug-in connection, 1st level connection right, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue

Accessories

E/AL-NS 35 - End bracket
Order only
Phoenix Contact
E/AL-NS 35 - End bracket
2,08 € per pcs
This price is valid until 24.12.25
Subtotal: 20,80 € MOQ: 10
EAN: 4017918017439
MPN: 1201662
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
ISH 4/0,5 - Insulating sleeve
Order only
Phoenix Contact
ISH 4/0,5 - Insulating sleeve
0,237 € per pcs
This price is valid until 24.12.25
Subtotal: 11,85 € MOQ: 50
EAN: 4017918104412
MPN: 3002885
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
ISH 4/1,0 - Insulating sleeve
Order only
Phoenix Contact
ISH 4/1,0 - Insulating sleeve
0,257 € per pcs
This price is valid until 24.12.25
Subtotal: 12,85 € MOQ: 50
EAN: 4017918104429
MPN: 3002898
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 BU - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 BU - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520676
MPN: 3035975
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 RD - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 RD - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520683
MPN: 3035976
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 YE - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 YE - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520690
MPN: 3035977
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 GN - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 GN - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520706
MPN: 3035978
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 VT - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 VT - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520713
MPN: 3035979
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 BK - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 BK - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520720
MPN: 3035980
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 BN - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 BN - Test adapter
0,99 € per pcs
This price is valid until 24.12.25
Subtotal: 9,90 € MOQ: 10
EAN: 4046356520737
MPN: 3035981
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
