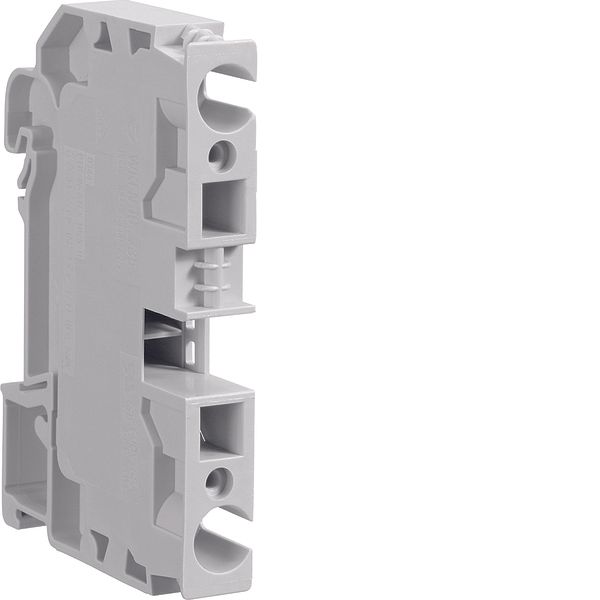

Feed-through-phase,10mm² image 1
Hager

Feed-through-phase,10mm²

Order only
Price (excl. VAT):
2,366 € per pcs
This price is valid until 31.12.25
EAN: 3250613951665
MPN: KYA10LH2
Package: 1
Box: 50
Pallet: 10000
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name Feed-through-phase,10mm²
Brand Hager
Categories DIN Rail Terminal Blocks
Harmonized System Code 8536 9010 00
Mounting method Other
Rated voltage 230 V
Rated current In 57 A

Packing details

Packing level 1 3250613951665
Packing level 2 3250613951665
Packing level 3 3250613951665

Other Technical data

Colour Grey
Width 72.5 mm
Height 50.5 mm
Depth 10 mm
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Internally connected stages No
Material insulation body Thermoplastic
Explosion-tested version 'Ex e' No

Description

Feed-through terminal-phase,10mm²,800V/57A, spring connection
