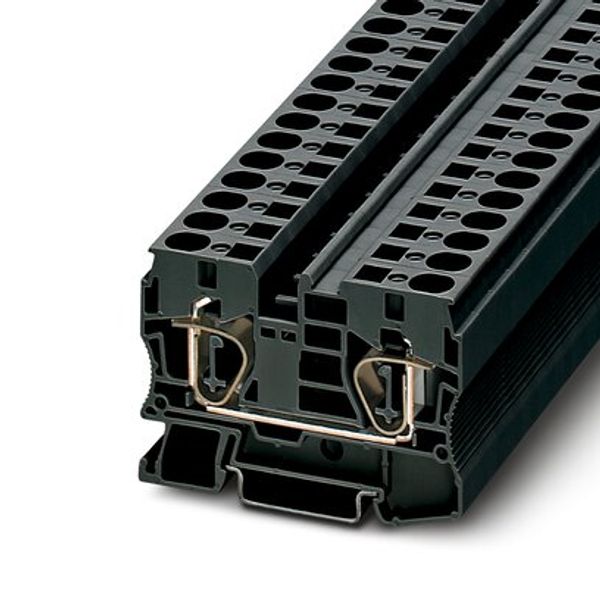

ST 10 BK - Feed-through modular terminal block

In stock: No Vendor stock: No Minimal order quantity: 50

Price (excl. VAT):

2,05 €

This price is valid until 24.12.25

Subtotal: 102,50 € MOQ: 50

EAN: 4055626457369

MPN: 3035665

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	ST 10 BK - Feed-through modular terminal block
Brand	Phoenix Contact
Categories	DIN Rail Terminal Blocks
Country of origin	PL
Harmonized System Code	8536 9010 00
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	1000 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	1
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.2-16 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-10 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.2-10 mm²
Rated current In	57 A

Packing details

Packing level 1

4055626457369

Other Technical data

Colour	Black
Width	10.15 mm
Height	71.34 mm
Depth	49.56 mm
Operating temperature	-60-105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	Yes
Internally connected stages	No
Material insulation body	Other
Explosion-tested version 'Ex e'	Yes

Description

Feed-through modular terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Spring-cage connection, 1 level, Rated cross section: 10 mm², cross section: 0.2 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: black
