Feed-through DIN rail terminal block with screw connection for mountin XW5T0001M
Order only
Price (excl. VAT):
0,416 €
EAN: 4548583794214
MPN: XW5T-S2.5-1.1-1
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Feed-through DIN rail terminal block with screw connection for mountin XW5T0001M |
| Brand | Omron |
| Categories |
DIN Rail Terminal Blocks
|
| Country of origin | NL |
| Harmonized System Code | 8536 9010 00 |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 2 |
| Connectable conductor cross section solid-core | 0.14-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.5-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.14-4 mm² |
| Rated current In | 24 A |
Packing details
| Packing level 1 | 4548583794214, 4548583794214 |
Other Technical data
| Colour | Grey |
| Operating temperature | -40-60 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| Closing plate required | Yes |
| Internally connected stages | No |
| Material insulation body | Thermoplastic |
| Explosion-tested version 'Ex e' | No |
Downloads
Description

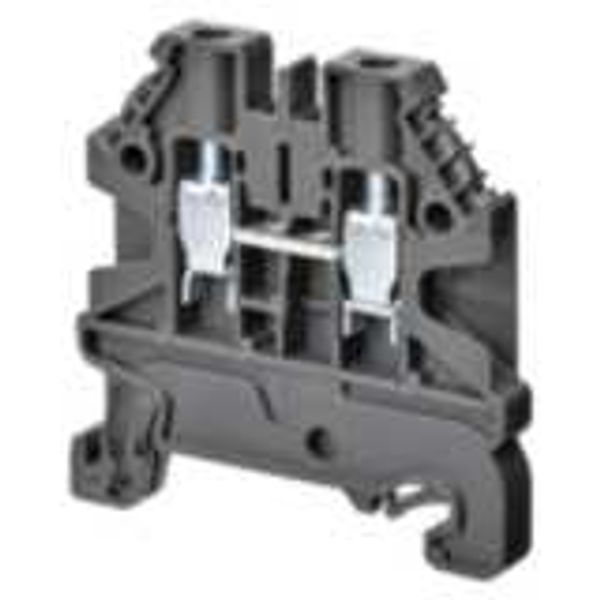

Feed-through DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 2.5 mm²; width 5 mm; color gray
Accessories
Order only
Omron
Cross bar for terminal blocks 2.5 mm² screw models, 2 poles, Yellow co XW5T0038M
0,286 €
EAN: 4548583794580
MPN: XW5S-S2.5-2
Package: 1
Order only
Omron
Cross bar for terminal blocks 2.5 mm² screw models, 3 poles, Yellow co XW5T0039H
0,53 €
EAN: 4548583794597
MPN: XW5S-S2.5-3
Package: 1
Order only
Omron
Cross bar for terminal blocks 2.5 mm² screw models, 4 poles, Yellow co XW5T0040A
0,78 €
EAN: 4548583794603
MPN: XW5S-S2.5-4
Package: 1
Order only
Omron
Cross bar for terminal blocks 2.5 mm² screw models, 5 poles, Yellow co XW5T0041M
1,05 €
EAN: 4548583794610
MPN: XW5S-S2.5-5
Package: 1
Order only
Omron
Cross bar for terminal blocks 2.5 mm² screw models, 10 poles, Yellow c XW5T0042H
2,35 €
EAN: 4548583794627
MPN: XW5S-S2.5-10
Package: 1
Order only
Omron
End plate for terminal blocks 2.5 mm² to 10 mm², screw model XW5T0059B
0,247 €
EAN: 4548583794795
MPN: XW5E-S2.5
Package: 1
