Fecaliën Opvoerinstallatie MOG.26.3.2 3x400V
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
5 206,98 €
EAN: 5710626081301
MPN: 97901130
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Fecaliën Opvoerinstallatie MOG.26.3.2 3x400V |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin | SR |
| Harmonized System Code | 8413 7021 00 |
| Nominal current | 6.1 A |
| Width | 712 mm |
| Height | 509 mm |
| Depth | 722 mm |
| Reservoir volume | 93 l |
| Number of phases | 3 |
| Material reservoir | Polyethylene (PE) |
| Cable length | 1.5 m |
| Max. discharge flow | 18.7 m³/h |
| Max. static height | 33.8 m |
| With de-aeration | No |
| Flange shape | Round |
| Rotational speed | 2870 1/min |
| Alarm output | Yes |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | No |

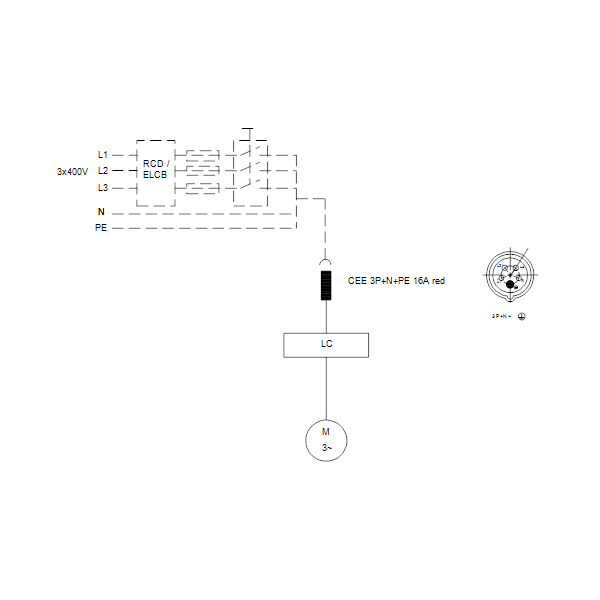

| Electrical connection | Connection cable with plug |
| Rated voltage | 400 V |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP68 |
| With alarm function | Yes |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Suitable for outdoor installation | No |
| Motor power input (P1) per motor | 3.7 kW |
| Motor power output (P2) per motor | 2.6 kW |
| Volume flow rate (BEP) | 3.2 m³/h |
| Discharge head at flow rate (BEP) | 307.85 kPa |
| Connection standard inlet side | Other |
| Connection standard outlet side | Other |
| Communication | None |
| Nominal operating mode | S3 35 % 1 min |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | No |
| Interface signal 0-20 mA / 4-20 mA | No |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| With cutting system | Yes |
| Max. operating pressure | 6 bar |
| Material quality reservoir | Other |
| Number of inlet ports | 6 |
| Material pump casing | Cast iron |
| Insulation class according to IEC | F |
| Max. dimension of fixed parts | 50 mm |
| Material quality pump casing | Cast iron GG 20 (GJL-200) |
| Number of pumps | 1 |
| Set-up behind toilet bowl | Yes |
| Medium temperature (continuous) | 0 °C |
| Material quality impeller/pump wheel | Other |
| Suitable for faeces | Yes |
| With non-return valve | No |
| Connection inlet side | Tube end |
| Nominal diameter connection inlet side | Other |
| Nominal diameter connection outlet side | DN 32 |
| Outer pipe diameter connection inlet side | 110 mm |
| Outer pipe diameter connection outlet side | 32 mm |
| Connection outlet side | Flange |
| Flange compression stage connection inlet side | PN 6 |
| Flange compression stage connection outlet side | PN 6 |
Packing details
| Packing level 1 | 5710626081301, 5710626081301 |
Downloads
Description

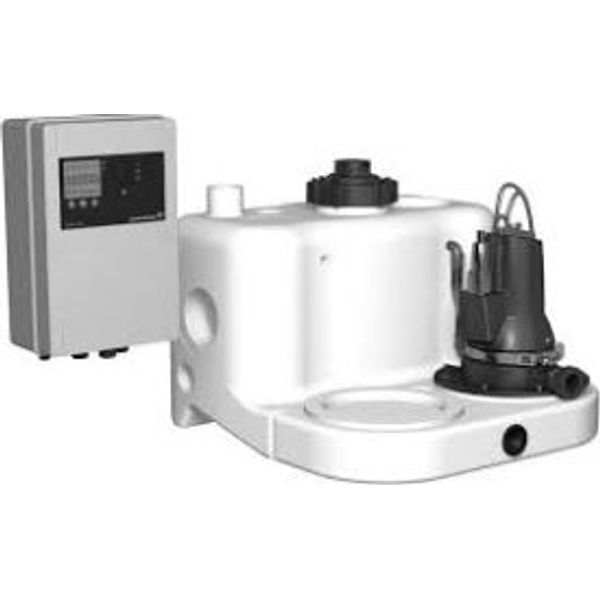

Fully integrated ready for installation, with collecting tank with grinder pump and submersible motor mounted on the collecting tank and a pre-wired controller including a level sensor (non-return valves and discharge pipes are available as accessories).
