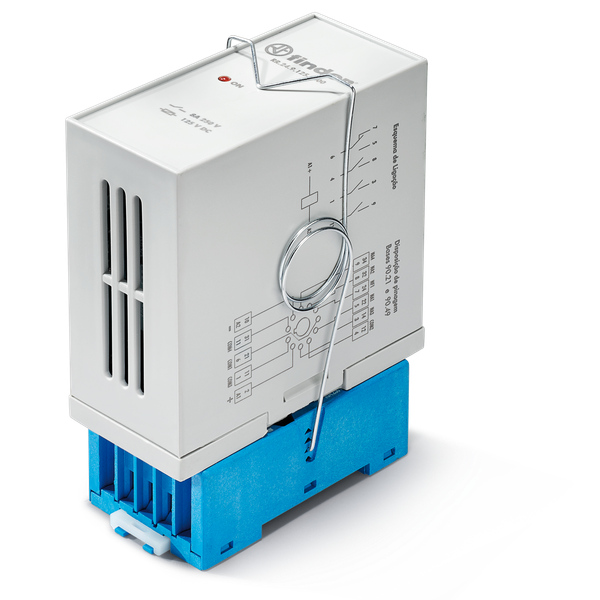

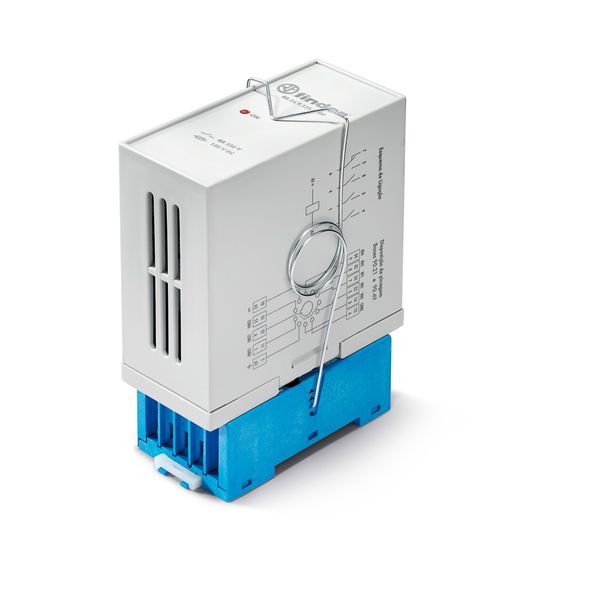

Fast relay modulex11pin socket 90.21/1CO+3NO/AgCdO/8A/110...125VDC (RR.24.9.125.0000)

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
278,80 € per pcs
This price is valid until 31.12.25
EAN: 8012823394275
MPN: RR2491250000
Package: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name Fast relay modulex11pin socket 90.21/1CO+3NO/AgCdO/8A/110...125VDC (RR.24.9.125.0000)
Brand FINDER
Categories Relays
Country of origin BR
Harmonized System Code 8536 4900 00
Nominal current 8 A
Type of switch contact Single contact
Type of electric connection Screw connection
Degree of protection (IP) IP20
With LED indication Yes
Voltage type for actuating DC
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 3

Packing details

Packing level 1 8012823394275

Other Technical data

Width 38 mm
Height 79 mm
Depth 81 mm
With detachable clamps No
Drive, polarization Polarity free
Drive, switching attitude Mono stable
With forced-guided contacts No
Complete with socket Yes
Rated control supply voltage at DC 125 V
Material of contact surface Untreated
Material contact Other copper alloys
Number of contacts as change-over contact 1
Material of contact insert Thermoplastic

Downloads

Description

Fast relay module (A): 8 A. Nr.contacts: 3NO+1CO Contact Material: AgCdO Type of electric connection: Screw connection Coil version: DC Volt DC: 125 V. Polarity free Mono stable Protection category: IP20 With LED indication: yes
