  • FAST ACTING RELAY

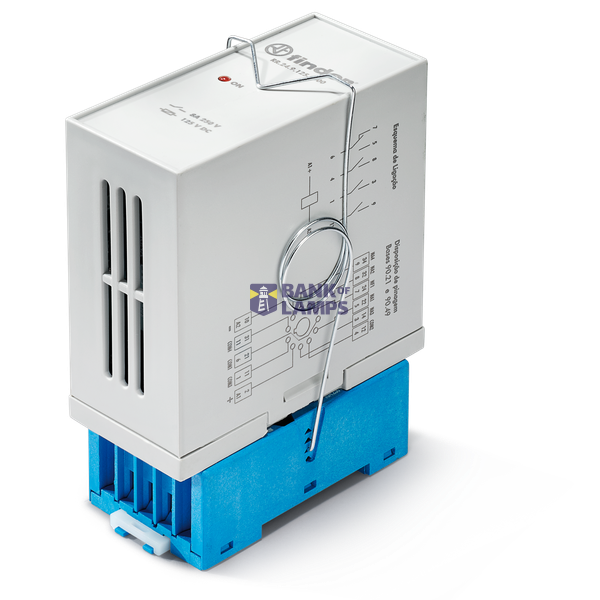

FAST ACTING RELAY image 1
FINDER

FAST ACTING RELAY

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name FAST ACTING RELAY
Brand FINDER
ETIM EC001437
Nominal current 8 A
Type of switch contact Single contact
Type of electric connection Screw connection
Degree of protection (IP) IP20
With LED indication Yes
Voltage type for actuating DC
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 3

Packing details

Packing level 1 8012823399836

Other Technical data

Width 38 mm
Height 79 mm
Depth 81 mm
With detachable clamps No
Drive, polarization Polarity free
Drive, switching attitude Mono stable
With forced-guided contacts No
Complete with socket Yes
Rated control supply voltage at DC 250 V
Number of contacts as change-over contact 1

Description

Fast relay module (A): 8 Nr.contacts: 3NO+1CO Contact Material: AgCdO Type of electric connection: Screw connection Coil version: DC Volt DC: 250 V. Polarity free Mono stable Protection category: IP20
