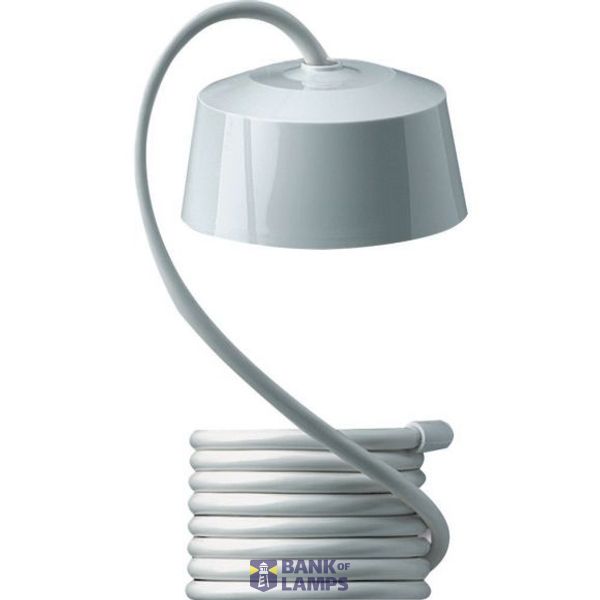

F8501 Eaton Moeller series Plug in lighting range (LSC) - Wiring devices
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | F8501 Eaton Moeller series Plug in lighting range (LSC) - Wiring devices |
| Brand | EATON |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC002560 |
| Model | Plug |
| Connection type | Screw connection |
| Locking mechanism | None |
| Rated current | 6 A |
| Rated voltage | 250 V |
| Number of poles | 3 |
| Length | 90 mm |
| Degree of protection (IP) | IP20 |
| Pole codification | L, N, PE |
Packing details
| Packing level 1 | 5010826003692 |
| Packing level 2 | 9010238243699 |
Other Technical data
| Width | 90 mm |
| Halogen free | Yes |
| Height | 65 mm |
| With strain relief | Yes |
| Housing material | Other |
| Cable diameter | 8-12 mm |
| Surface treatment contacts | Other |
| Pollution degree | 2 |
| Mechanical coding | No |
| Rated surge voltage | 0 kV |
| Continuity resistor | 0 mOhm |
| Contact material | Other |
| Number of connections per pole | 1 |
| Colour coding/contact insert | Other |
| Fire load | 0 kWh |
| Connection cross section (fine-strand) | 4 mm² |
| Connection cross section (solid-core) | 2.5 mm² |
| Max. continuous temperature resistance contact part | 0 °C |
| Max. continuous temperature resistance strain relief | 0 °C |
Description
LSC ceiling assembly according to BS 6972: 1988 and BS 7001: 1998. Rated 6A with outlets capable of installation on a 16A lighting circuit. Coupler supports loads up to 5kg. Base terminals will accept 2 x 4 qmm incoming cables. Heat resisting cable is to BS 6141. Fixing centres 50,8 mm.
