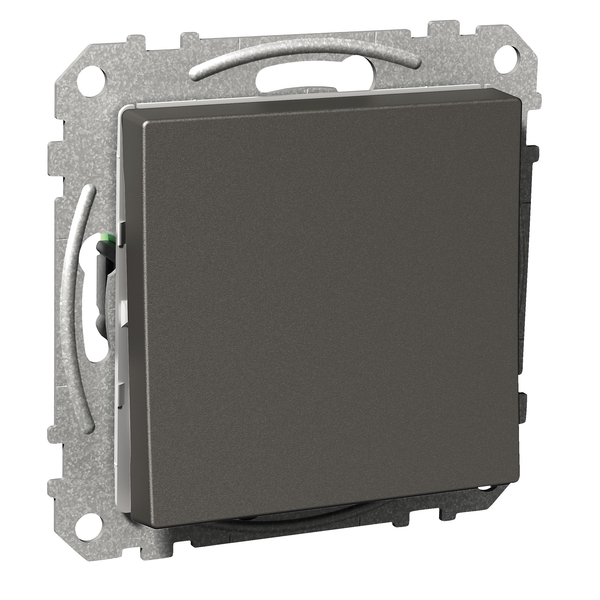

Exxact rocker switch intermediate screwless anthracite
In stock: No
Vendor stock: Yes
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 3606480201240
MPN: WDE003531
Package: 1
Box: 5
Pallet: 3000
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Exxact rocker switch intermediate screwless anthracite |
| Brand | Schneider Electric |
| Categories |
Switches
|
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Rocker/button |
| Rated current | 16 A |
| Type of fastening | Screw mounting |
| Wiring system | Intermediate switch |
| Suitable for degree of protection (IP) | IP21 |
Packing details
| Packing level 1 | 3606480201240 |
| Packing level 2 | 3606480201240 |
| Packing level 3 | 3606480201240 |
Other Technical data
| Colour | Anthracite |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Push-in clamp |
| Illumination | No |
| Surface protection | Lacquered |
| Built-in depth | 15 mm |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Number of rockers | 1 |
| RAL-number (similar) | 0 |
| Switching current for fluorescent lamps | 16 AX |
| Push button switch | No |
| Washing machine switch | No |
| Surface finishing | Matt |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 33 mm |
| Label space/information surface | No |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Schneider Electric Exxact switch WDE003531 is a mechanism in color anthracite. This is a intermediate switch. The device's fixing mode is by claw kit, by screw. And the rated current of this switch is 16A. This device is 71 mm in width, 71 mm in height and 15 mm in embedding depth, and 18 mm in projecting depth. What's more, flush mounting is available so that its box can be installed into the surface. The IP rating of this device is IP20, IP44. Its connection terminals are screwless terminals. The switch is made of ABS (acrylonitrile butadiene-styrene), making it as resistant as possible. What's more, it well satisfied the standards of EN 60669-1. It obtained CE, FIMKO, NEMKO, SEMKO certificate as well. Being environmentally friendly, this switch is a green premium product too. And it is mercury free and heavy metal free, being environment-friendly as always. This switch is SVHC (substances of very high concern) free too. Exxact is a wiring range developed from Nordic installation habits. As integrated solutions for energy and comfort controls, there are more than 250 functions and inserts to choose from.
