Exxact double socket-outlet earthed screwless white
In stock: Yes
Vendor stock: No
Minimal order quantity: 10
Price (excl. VAT):
17,42 €
Subtotal: 174,20 €
MOQ: 10
EAN: 3606480203688
MPN: WDE002196
Package: 1
Box: 10
Pallet: 1440
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Exxact double socket-outlet earthed screwless white |
| Brand | Schneider Electric |
| Categories |
Sockets
|
| Country of origin | CN |
| Harmonized System Code | 3926 9097 00 |
| Mounting method | Flush mounted (plaster) |
| Colour | White |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Untreated |
| With signal lamp | No |
| With enhanced contact protection | Yes |
| With on/off switch | No |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | No |
| Special power supply | No special power supply |
| Insulated mounting | Yes |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Imprint/indication | None |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | Yes |
| Suitable for degree of protection (IP) | IP20 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Protective earth pin round | No |
| Metallic colour | No |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 3606480203688 |
| Packing level 2 | 3606480203685 |
| Packing level 3 | 3606480203682 |
| Packing level 4 | 3606480203688 |
Downloads
ECOP (Environmental Code of Practice)
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
Description

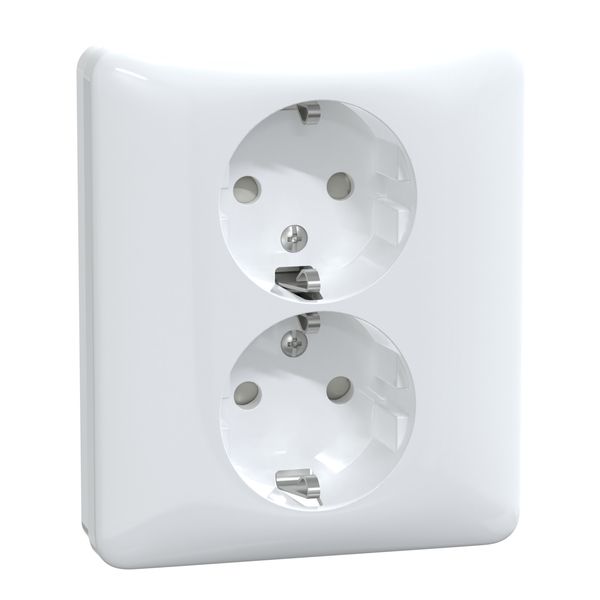

Schneider Electric Exxact socket-outlet WDE002196 in color white is a mechanism with 2 outlets. This device is to be completed with Exxact frame. The outlet pole configuration of this socket-outlet is 2P + E with shutters. And the rated current of this socket-outlet is 16A. The fixing mode of this device is by claw kit. Its connection terminals are screwless terminals. The socket-outlet is 85 mm in width, 100 mm in height and 22.4 mm in embedding depth, whose projecting depth is 21.8 mm. It reaches IP20 degree of protection too. Being made of PC (polycarbonate) material, this socket-outlet is very reliable and resistant. Besides, it meets the following standards, DIN VDE 0620-1, IEC 60884-1, SFS 5610:2004, SS 4280834. It obtained FIMKO, NEMKO, SEMKO certificate as well. Besides, it is a green premium product. And it is mercury, heavy metal free and SVHC (substances of very high concern) free too. Exxact is a wiring range developed from Nordic installation habits. As integrated solutions for energy and comfort controls, there are more than 250 functions and inserts to choose from.
