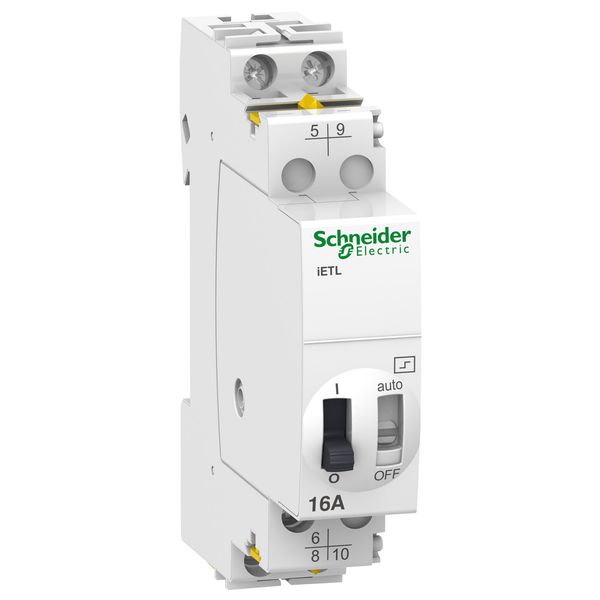

Relay Acti9 iETL16 2NO 16A 110VDC/230–240VAC
Technical Information
| Item condition | New |
| Manufacture name | Relay Acti9 iETL16 2NO 16A 110VDC/230–240VAC |
| Brand | Schneider Electric |
| Categories |
Assembly Accessories and Parts
|
| Country of origin* | BE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Mounting method | DIN rail |
| Function | Mechanical |
| Rated current | 16 A |
| Supply voltage | 24-250 V |
Packing details
| Packing level 1 | 3606480091926 |
| Packing level 2 | 3606480091923 |
| Packing level 3 | 3606480091924 |
Other Technical data
| Built-in depth | 84 mm |
| Width in number of modular spacings | 1 |
| Control voltage 1 | 230-240 V |
| Control voltage 2 | 110 V |
| Type of control voltage 1 | AC |
| Type of control voltage 2 | DC |
| Frequency control voltage 1 | 50-60 Hz |
| Voltage type of supply voltage | AC |
| Max. switching current (cos phi = 0.6) | 16 A |
| Max. incandescent lamp load | 1600 W |
| Max. load fluorescent lamp | 1300 VA |
| Max. load fluorescent lamp (Duo circuit) | 2000 VA |
| Max. load fluorescent lamp (parallel compensated) | 900 VA |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 1 |
Downloads
Description
This Acti9 iETL iTL 16 is a modular extension for impulse relay. This 2P device has 1 changeover and 1 normally open contact. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 230VAC to 240VAC or 110VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C . This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
