Expansion tank GT-HR-800 PN6 R1 V, vertical, diaphragm
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
2 058,33 €
EAN: 5700830555200
MPN: 96573407
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Expansion tank GT-HR-800 PN6 R1 V, vertical, diaphragm |
| Brand | GRUNDFOS |
| Categories |
Accessories (ventilators, pumps and gate operators)
Pump Systems & Units |
| Country of origin | PL |
| Harmonized System Code | 7309 0030 00 |
| Colour | Grey |

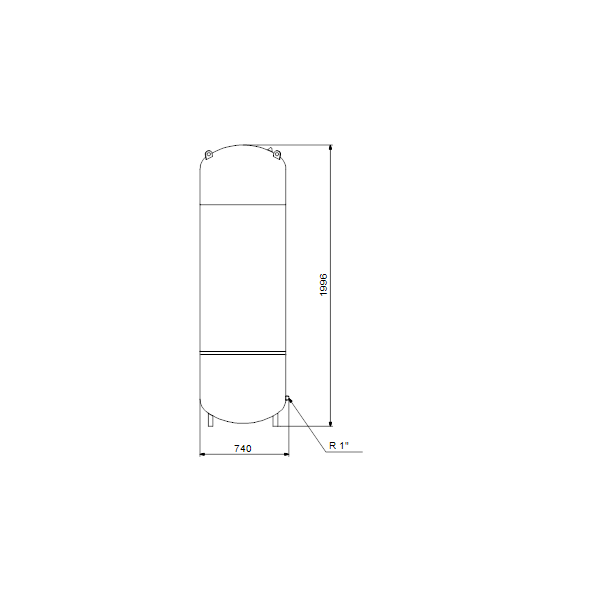

| Height | 1996 mm |
| Connection | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Diameter | 740 mm |
| Volume | 800 l |
| With safety valve | No |
| With pressure gauge | No |
| With mounting material | No |
| Horizontal positioning | No |
| Suitable for central heating | Yes |
| Material membrane/bladder | SBR |
| Max. glycol mixture | 50 % |
| With vessel manifold | No |
| Pre-pressure | 1.5 bar |
| Flange compression class | PN 6 |
| Max. operating pressure | 6 bar |
| With drain | No |
| Suitable for tap water | No |
| Vertical positioning | Yes |
| With legs | No |
| Nominal diameter expansion connection | 1 inch (25) |
| With exchangeable membrane | No |
| With fixed wall support | No |
| Medium temperature (continuous) | -10 °C |
| Suitable for cooling | Yes |
Packing details
| Packing level 1 | 5700830555200, 5700830555200 |
Downloads
Description

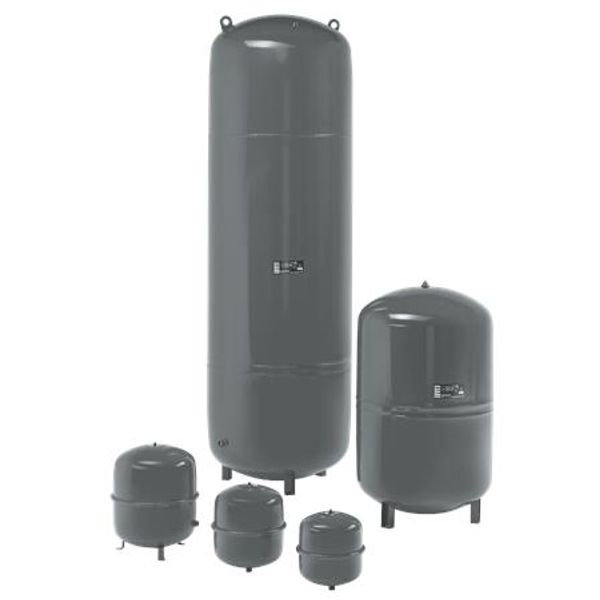

Grundfos GT-HR are pressure tanks with a capacity ranging from 8 to 1000 liters.
