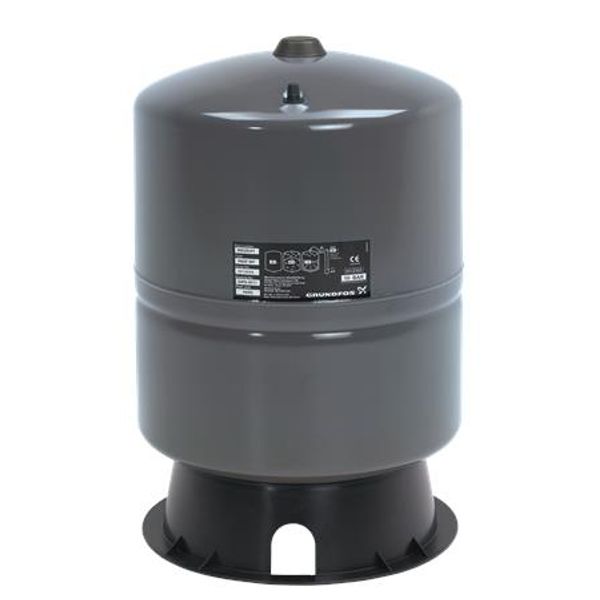

Expansion tank GT-H-80 PN10 G1 V, vertical, diaphragm
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
458,53 €
EAN: 5700313015719
MPN: 96894291
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Expansion tank GT-H-80 PN10 G1 V, vertical, diaphragm |
| Brand | GRUNDFOS |
| Categories |
Accessories (ventilators, pumps and gate operators)
Pump Systems & Units |
| Country of origin | TW |
| Harmonized System Code | 7310 1000 00 |
| Colour | Grey |
| Height | 830 mm |
| Connection | External thread cylindrical BSPP-G (ISO 228-1) |
| Diameter | 391 mm |
| Volume | 80 l |
| With safety valve | No |
| With pressure gauge | No |
| With mounting material | No |
| Horizontal positioning | No |
| Suitable for central heating | No |
| Material membrane/bladder | IIR (butyl) |
| Max. glycol mixture | 0 % |
| With vessel manifold | No |
| Pre-pressure | 1.9 bar |
| Flange compression class | PN 10 |
| Max. operating pressure | 10 bar |
| With drain | No |
| Suitable for tap water | Yes |
| Vertical positioning | Yes |
| With legs | Yes |
| Nominal diameter expansion connection | 1 inch (25) |
| With exchangeable membrane | Yes |
| With fixed wall support | No |
| Medium temperature (continuous) | 0 °C |
| Suitable for cooling | No |
Packing details
| Packing level 1 | 5700313015719, 5700313015719 |
Downloads
Description
Grundfos GT-H are maintenance-free multi-purpose pressure tanks with a capacity ranging from 2 to 100 litres.
