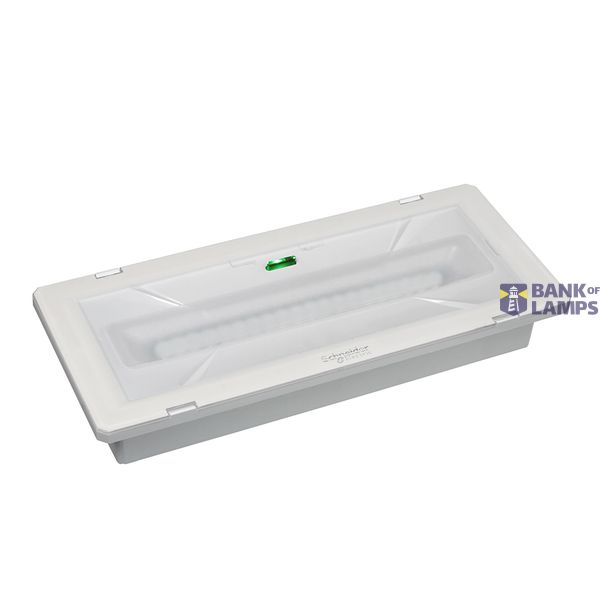

EXIWAY SMARTLED IP65 ACT.L/700SA/1NMH B
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EXIWAY SMARTLED IP65 ACT.L/700SA/1NMH B |
| Brand | Schneider Electric |
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| ETIM | EC001957 |
| Width | 300 mm |
| Length | 127 mm |
| Height/depth | 45.5 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 230 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 4750-5250 K |
| Max. system power | 4.8 W |
| Rated luminous flux according to IEC 62722-2-1 | 700 lm |
Packing details
| Packing level 1 | 3606480894305 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Outer diameter | 0 mm |
| Function | Escape route lighting/signage |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | Not required |
| Built-in width | 0 mm |
| Built-in diameter | 0 mm |
| Suitable for labelling type | Acrylic plate |
| Number of poles | 2 |
| Housing material | Plastic |
| Wiring system | Standby switching |
| Number of lighting heads | 1 |
| Built-in length | 0 mm |
| Material cover | Plastic, transparent |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 0 |
| With remote switch connection | Yes |
| Monitoring equipment | Automatic self test |
| Recognition distance | 20 m |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Rated life time L80/B10 at 25 °C | 100000 h |
| Luminous flux in standby mode | 330 lm |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| LED nominal current at constant current | 120 mA |
| Light distributor | Reflector |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Nominal operation time | 1 h |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Built-in height/depth | 0 mm |
| Power factor | 0.05 |
