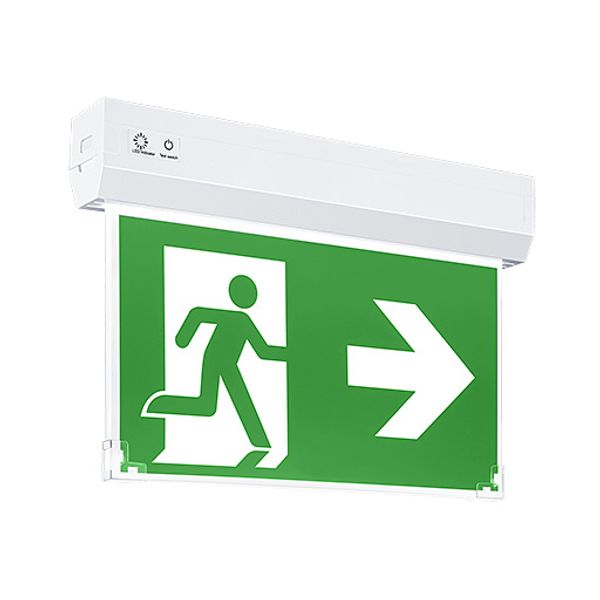

NINA 30M SELFTEST E3 LiFePO4 - Exit Sign, Visibility 30M
Order only
Price (excl. VAT):
34,58 €
EAN: 9010299883360
MPN: 96635654
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | NINA 30M SELFTEST E3 LiFePO4 - Exit Sign, Visibility 30M |
| Brand | THORNeco |
| Categories |
Emergency luminaires
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 6120 00 |
| Width | 45 mm |
| Length | 343 mm |
| Height/depth | 231 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Colour temperature | 5700 K |
| Max. system power | 5.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 70 lm |
Packing details
| Packing level 1 | 9010299883360, 9010299883360 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Lamp holder | None |
| Colour housing | White |
| Voltage type | AC |
| With remote control | No |
| Built-in width | 0 mm |
| Housing material | Plastic |
| Built-in length | 0 mm |
| Material cover | Plastic, opal |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Constant light output (CLO) | No |
| With pictogram | No |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Exchangeable control gear | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0.5 |
Downloads
Description
LED Escape sign luminaire with local battery supply for 3 hour emergency lighting with Manual- and SelfTest(Autotest) function, Viewing range up to 30m, Compliant with DIN EN 1838 and DIN4844-1, easy to install with all in one mounting bracket for ceiling, wall, 90° mounting, including 4 pictograms (up, down, left, right), display of luminaire status via status LED, Lifetime: 50.000hrs @L80, protection class: IP40, Impact strength: IK03, Maintained and non-maintained mode, battery: LiFePO4 3,2V 1,5Ah, initial charging period: 24 hours. Dimensions: 343 x 45 x 231 mm, weight: 0.98 kg.
