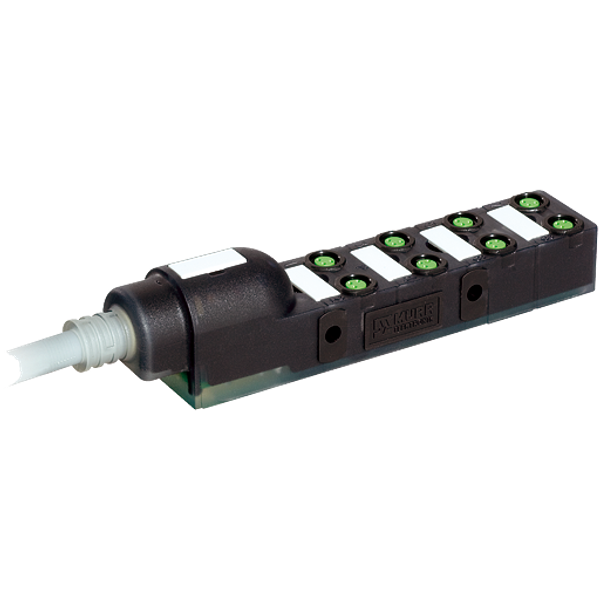

EXACT8, 8XM8, 3 POLE PRE-WIRED CABLE 15.0m PUR/PVC 8*0,34+2*0,75
Order only
Price (excl. VAT):
115,33 €
EAN: 4048879054751
MPN: 8000-88010-3571500
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | EXACT8, 8XM8, 3 POLE PRE-WIRED CABLE 15.0m PUR/PVC 8*0,34+2*0,75 |
| Brand | Murrelektronik |
| Categories |
Pre-wired Sensor/Actuator Module
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 24 V |
| Operating voltage | 18-30.2 V |
| Max. current carrying capacity per I/O signal | 2 A |
| Max. current carrying capacity per socket | 2 A |
| Max. total current | 10 A |
| Number of channels per connector slot | 1 |
| Number of sensor-/actuator-slots | 8 |
| Length of the preassembled cable | 15 m |
| Cable outer diameter for cable gland | 8.6 mm |
| Number of poles sensor/actuator slots | 3 |
| Connectable conductor cross section | 0.34 mm² |
Packing details
| Packing level 1 | 4048879054751, 4048879054751 |
Other Technical data
| Width | 30 mm |
| Height | 132 mm |
| Depth | 20.5 mm |
| Colour housing | Black |
| Housing material | Plastic |
| Operating temperature | -30-80 °C |
| With potential separation | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Material of contact surface | Gold |
| Degree of protection (IP) | IP65/IP67 |
| With LED indication | Yes |
| Pollution degree | 3 |
| Connection for NPN-sensors | No |
| Type of branches for sensor-/actuator cables | M8 |
| Thread sleeves sensor/actuator slots | M8 |
| Cable length configurable | Yes |
| Diameter contact female | 8 mm |
| Fix cable version suitable for cable guide chain | Yes |
| Material insulation body | Polyamide (PA) |
| Material contact body | Other copper alloys |
Downloads
Description
EXACT8, 8XM8, 3 POLE PRE-WIRED CABLE 15.0m PUR/PVC 8*0,34+2*0,75
