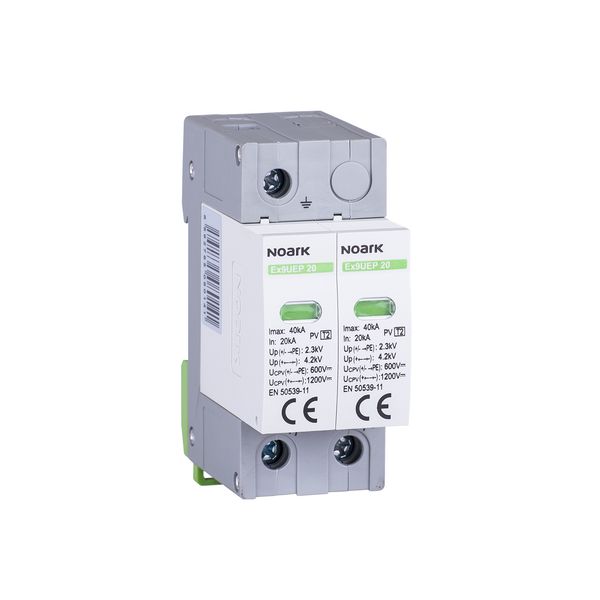

Type 2 Surge Protective Device Ex9UEP, 20R, 2P, 600

Order only

EAN: 8592765080202

MPN: 108019

Package: 1

Price (excl. VAT)

94,64 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Ex9UEP 20R 2P 600
Brand	Noark
Categories	Surge Protection Devices (SPD)
ETIM	EC000941
Nominal discharge surge current (8/20)	20 kA
Nominal voltage DC	600 V
Degree of protection (IP)	IP20
Max. PV-voltage	545 V

Packing level 1

8592765080202

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	Yes
Construction size	2 modular spacing
Category type 2	Yes
Signalling at the device	Optic
Max. continuous voltage DC	600 V
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	25 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²

DC SPD Ex9UEP with remote contact, Class II, In=20kA, 600 V DC, 2MU width, for ungrounded PV systems
