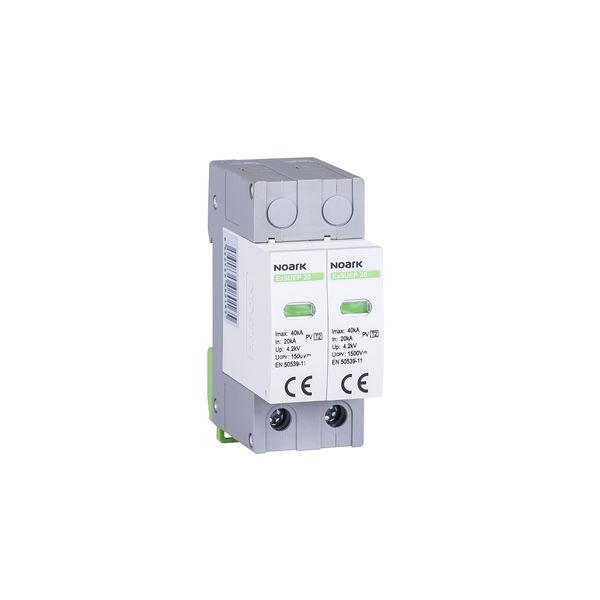

Type 2 Surge Protective Device Ex9UEP, 20, 2P, 1500

Order only

EAN: 8592765101792

MPN: 110179

Package: 1

Price (excl. VAT)

94,64 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Ex9UEP 20 2P 1500
Brand	Noark
Categories	Surge Protection Devices (SPD)
ETIM	EC000941
Voltage protection level	5 kV
Nominal discharge surge current (8/20)	20 kA
Nominal voltage DC	1500 V
Degree of protection (IP)	IP20
Max. PV-voltage	1363 V

Packing level 1

8592765101792

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	No
Construction size	2 modular spacing
Category type 2	Yes
Signalling at the device	Optic
Max. continuous voltage DC	1500 V
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	25 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²

DC SPD Ex9UEP, Class II, In=20kA, 1500 V DC, 2MU width, for grounded PV systems
