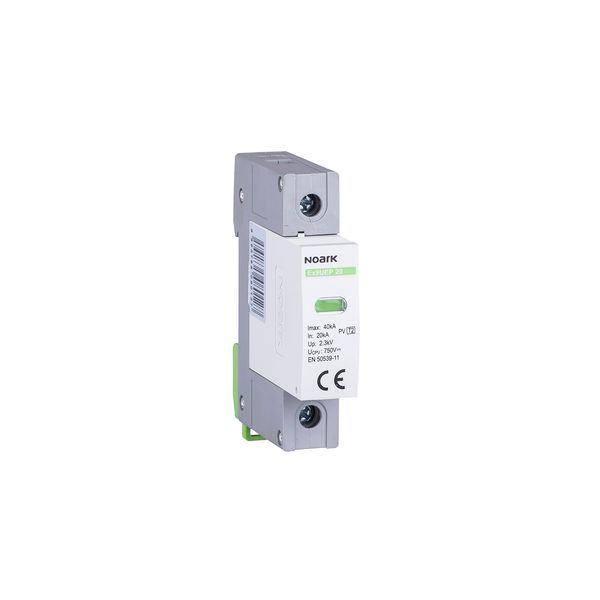

Type 2 Surge Protective Device Ex9UEP, 20, 1P, 750

Order only

EAN: 8592765101716

MPN: 110171

Package: 1

Price (excl. VAT)

81,06 €

per unit

MOQ: 1

EDT to our warehouse: 4-6 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Ex9UEP 20 1P 750
Brand	Noark
Categories	Surge Protection Devices (SPD)
ETIM	EC000941
Nominal discharge surge current (8/20)	20 kA
Nominal voltage DC	750 V
Degree of protection (IP)	IP20
Max. PV-voltage	681 V

Packing level 1

8592765101716

Mounting method	DIN rail (top hat rail) 35 mm
With remote signalling contact	No
Construction size	1 modular spacing
Category type 2	Yes
Signalling at the device	Optic
Max. continuous voltage DC	750 V
Integrated backup fuse	No
Max. conductor cross section solid (solid, stranded)	25 mm²
Max. conductor cross section flexible (fine-strand)	25 mm²

DC SPD Ex9UEP, Class II, In=20kA, 750 V DC, 1MU width
