  • Ex9TAQ 1CO 230V

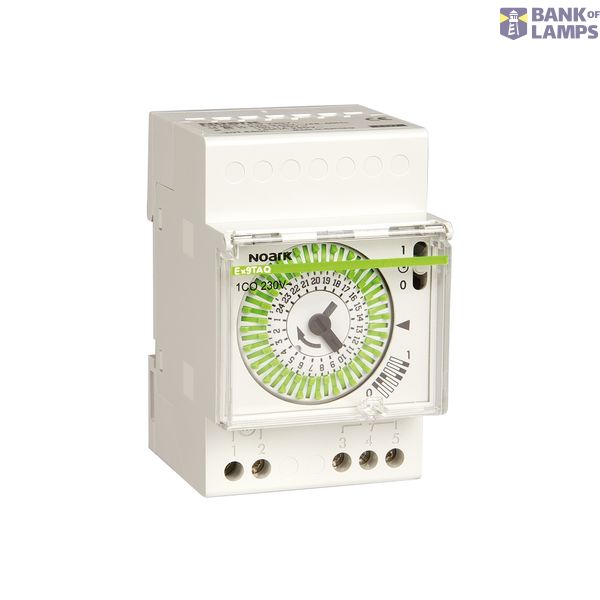

Ex9TAQ 1CO 230V image 1
Noark

Ex9TAQ 1CO 230V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex9TAQ 1CO 230V
Brand Noark
ETIM EC002304
Mounting method DIN rail
Number of channels 1
Annual program No
Contact type Change-over contact
60 min program No
Automatic switching summer-/winter time No
Suitable for manual operation Yes
Switching preselection Yes
Voltage type of supply voltage AC
Potential free switch contact Yes
Nominal switching current at 250 V AC 16 A
Degree of protection (IP) IP20

Packing details

Packing level 1 8592765035172

Other Technical data

Height 85 mm
Depth 60 mm
Weekly program No
Width in number of modular spacings 3
24 h program Yes
Mains synchronous No
Quartz controlled Yes
Autonomy in years 0
Autonomy in hours 150
Shortest switching time channel 1 30 min
Shortest switching time channel 2 0 min
Program shift divide 1 30 min
Program shift divide 2 0 min

Description

Instalation Timer Analogue, daily program, Quartz, 1channel with CO contact, Voltage 230V
