Ex9TAMS 1NO 230V
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex9TAMS 1NO 230V |
| Brand | Noark |
| ETIM | EC002304 |
| Mounting method | DIN rail |
| Number of channels | 1 |
| Annual program | No |
| Contact type | Normally open contact |
| 60 min program | No |
| Automatic switching summer-/winter time | No |
| Suitable for manual operation | Yes |
| Switching preselection | Yes |
| Voltage type of supply voltage | AC |
| Potential free switch contact | Yes |
| Nominal switching current at 250 V AC | 16 A |
| Degree of protection (IP) | IP20 |
| Accuracy per day | 0 s |
Packing details
| Packing level 1 | 8592765035158 |
Other Technical data
| Height | 90 mm |
| Depth | 60 mm |
| Weekly program | No |
| Width in number of modular spacings | 1 |
| 24 h program | Yes |
| Mains synchronous | Yes |
| Quartz controlled | No |
| Autonomy in years | 0 |
| Autonomy in hours | 0 |
| Shortest switching time channel 1 | 30 min |
| Shortest switching time channel 2 | 0 min |
| Program shift divide 1 | 30 min |
| Program shift divide 2 | 0 min |
Description

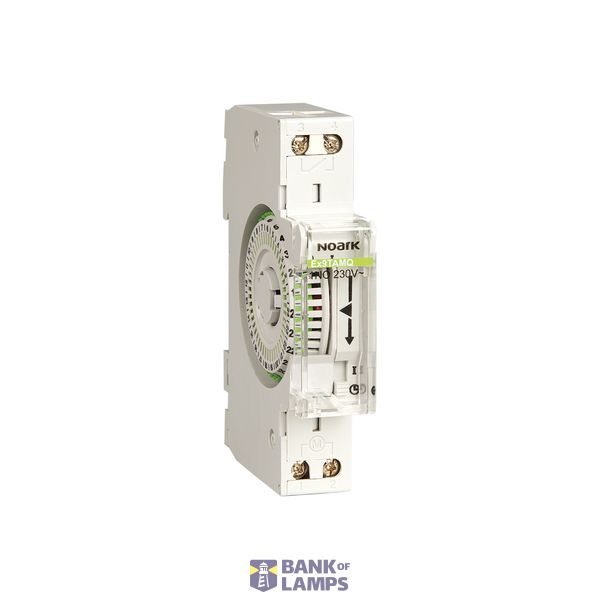

Instalation Timer Analogue, Mini, daily program, Synchronouos, 1channel with NO contact, Voltage 230V
