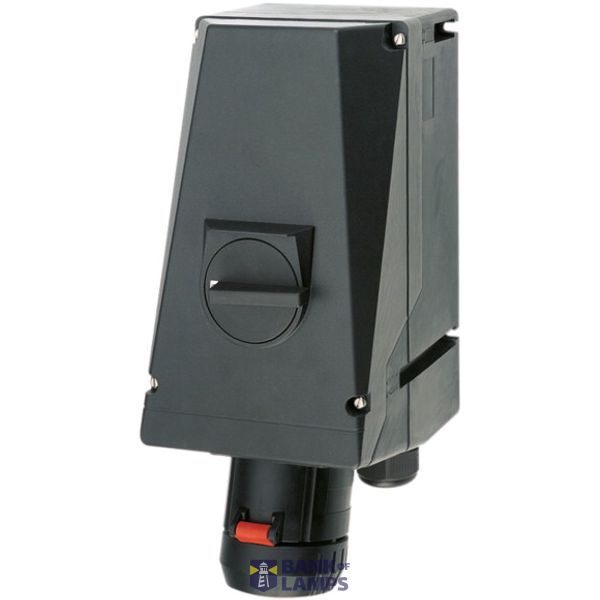

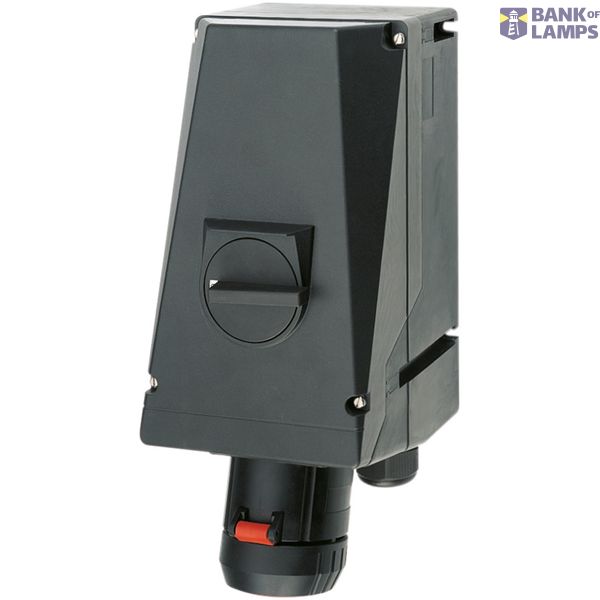

Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C image 1
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C image 2
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C image 3
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C image 4
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C image 5
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C thumbnail 1
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C thumbnail 2
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C thumbnail 3
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C thumbnail 4
Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C thumbnail 5
EATON

Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-wall socket Zone 1, 63 A, 4pole, 480 - 500 V / metallic entry, -40 °C
Brand EATON
ETIM EC000016
Nominal current 63 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 4
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Horizontal/vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 7 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4251510743383

Description

Ex-Wall socket for Zone 1/21; 63 A; 4-pole; GHG 514480-500 V; 7 h; 2 x M40 metal thread with threaded plug; -40 °C
