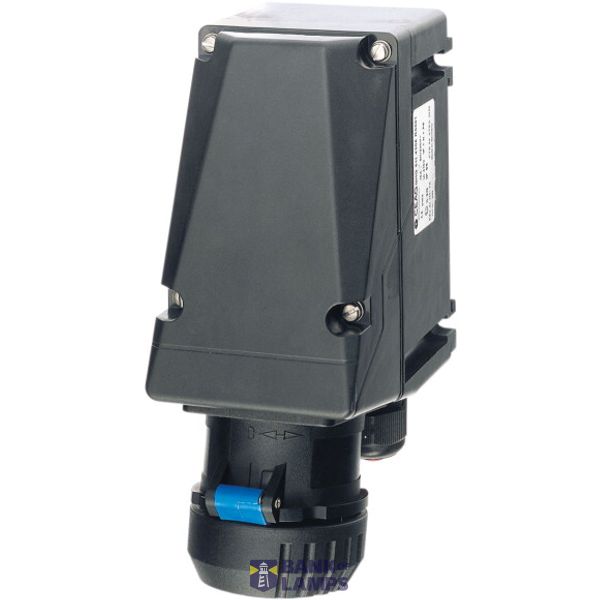

Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 image 1
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 image 2
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 image 3
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 image 4

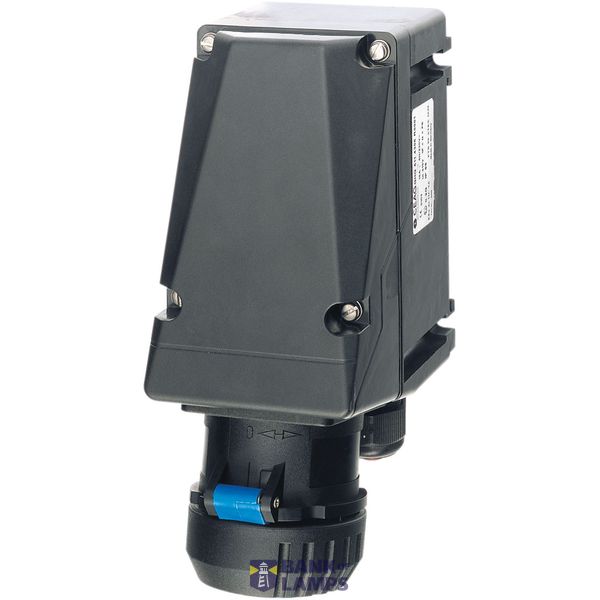

Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 image 5
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 image 6
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 thumbnail 1
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 thumbnail 2
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 thumbnail 3
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 thumbnail 4
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 thumbnail 5
Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20 thumbnail 6
EATON

Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Wall socket for zone 1/21, Variant: 16A-3Pol-4H, Cable entry: 2x M20
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 3
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 4 h
Identification colour Yellow
Voltage according to EN 60309-2 110 V (50+60 Hz) yellow
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217426711

Description

Ex-Wall socket for zone 1/21; Variant: 16A-3P-4H/130V; Rated voltage: up to 415V AC; Frequency: up to 400Hz; Rated current: 16A; Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x W x H): 223mm x 90mm x 121mm;Weight: 1,2kg;Protection class: I;Degree of protection: IP66; Enclosure material: Polyamide; Cable entry: 2x M20 Cable gland (Plastic) with 2x Blanking plug M20 (Plastic)
