EATON

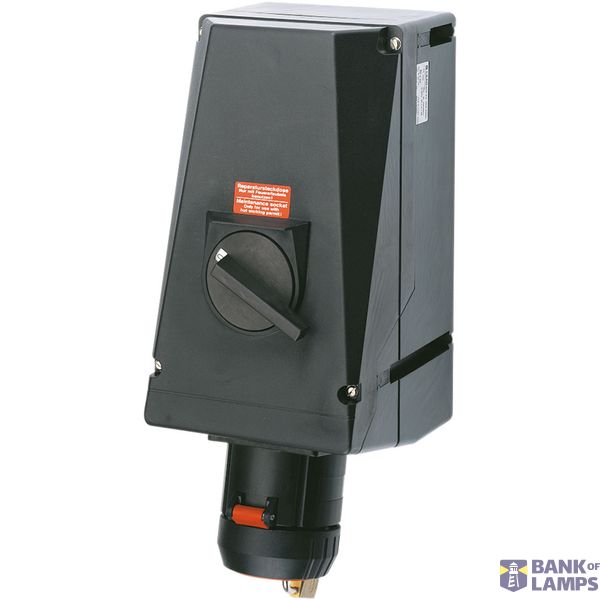

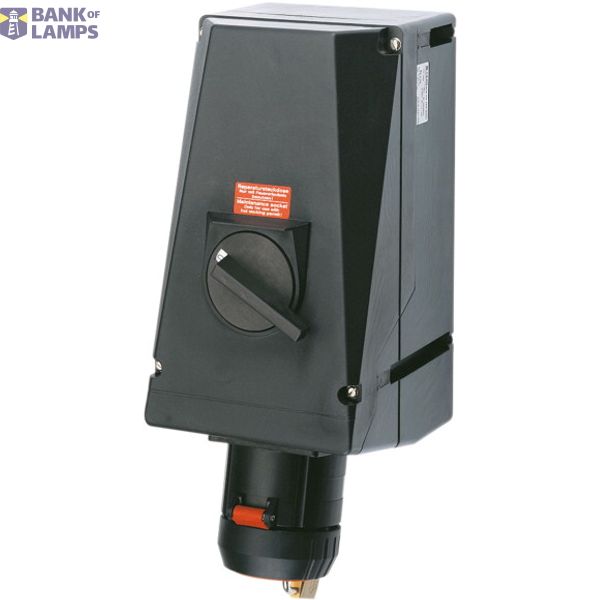

Ex-Wall socket, for zone 1/21, 63A-5Pol-6h / 240 V / 415 V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Wall socket, for zone 1/21, 63A-5Pol-6h / 240 V / 415 V
Brand EATON
ETIM EC000016
Nominal current 63 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 5
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250959904089

Description

Ex-Wall socket 63A-5P-6H/240/415V;Cable entry: 2x Metall Thread M40 mit Ex-Screw cap plastic;Enclosurematerial: Polyamide Polyamide;Voltage: 500 V AC;Frequency: up to 400 Hz;Rated current: 63 A;Rated breaking capacity AC3 according to EN 60947-3: Ue 500 V / Ie 63 A;Marking according to 2014/34/EU: Ex II 2G Ex db eb IIC T6 / Ex II 2D Ex tb IIIC T80 Db;EC type-examination certificate: BVS 17 ATEX E 073 X;Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x B x H): 475 x 200 x 226 mm;Weight: 8.1 kg;Protection class: I;Degree of protection according to EN 60529: IP66
