EATON

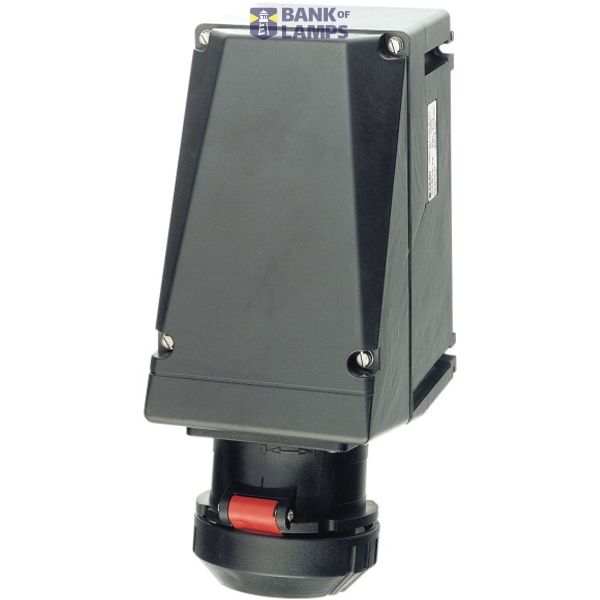

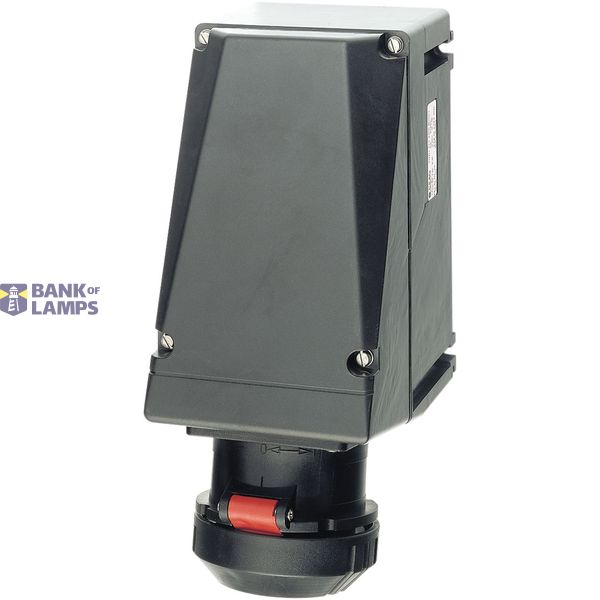

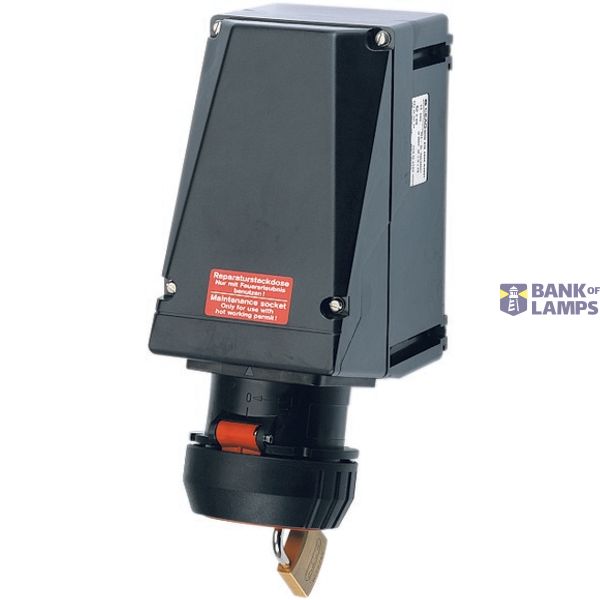

Ex-Wall socket, for zone 1/21, 32A-4P-6h / 415 V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Wall socket, for zone 1/21, 32A-4P-6h / 415 V
Brand EATON
ETIM EC000016
Nominal current 32 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 4
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217427084

Description

Ex-Wall socket 32A-4P-6H/415V;Cable entry: 1x plastic-Cable entry M40 for Ø 17 - 28 mm; 1 x M40 Ex-Screw cap plastic;Enclosurematerial: Polyamide Polyamide;Voltage: up to 750 V AC;Frequency: up to 400 Hz;Rated current: 32 A;Rated breaking capacity AC3 according to EN 60947-3: Ue 690 V / Ie 32 A;Marking according to 2014/34/EU: Ex II 2 G Ex de (ia) IIC T6; Ex II 2 D Ex tD A21 IP66 T60 °C;EC type-examination certificate: PTB 99 ATEX 1041; Permissible ambient temperature: -20 °C up to 40 °C;Dimensions (L x B x H): 285 x 120 x 166 mm;Weight: 1.8 kg;Protection class: I;Degree of protection according to EN 60529: IP66
