EATON

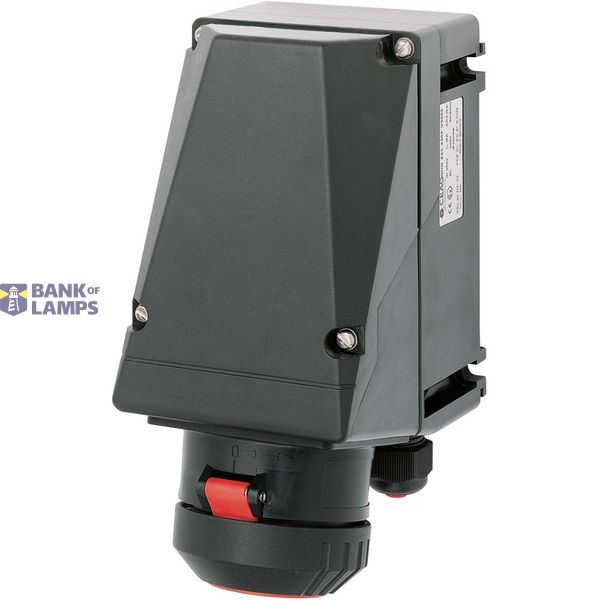

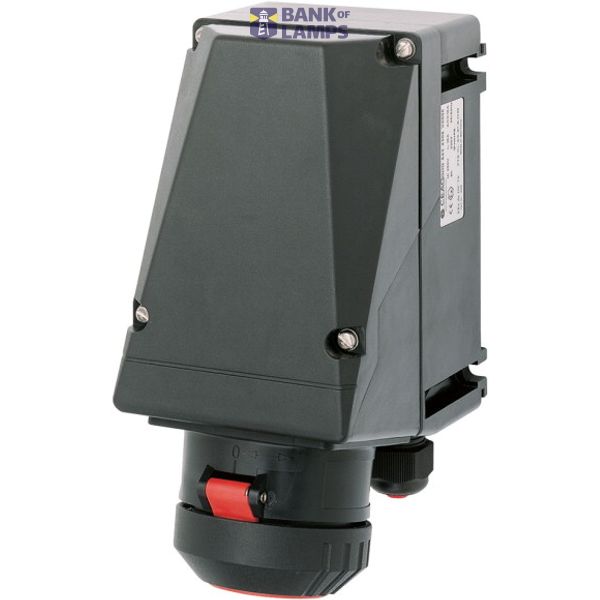

Ex-Wall socket for zone 1/21, 16A-5Pol-6H, Cable entry: 2x M25

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Wall socket for zone 1/21, 16A-5Pol-6H, Cable entry: 2x M25
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 5
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217426834

Description

Ex-Wall socket 16A-5P-6H for zone 1/21; Variant: 16A-5Pol-6H; Voltage: 415 V AC; Rated current: 16 A; Number of poles: 5 pole; Content: 6 Clock; Permissible ambient temperature: -20 °C up to +55 °C; Protection class: I; Degree of protection: IP66; Enclosure material: Polyamide; Enclosure color: Black; Cable entry: 1x M25 Cable gland (Plastic) and 1x M25 Blind plug (Plastic)
