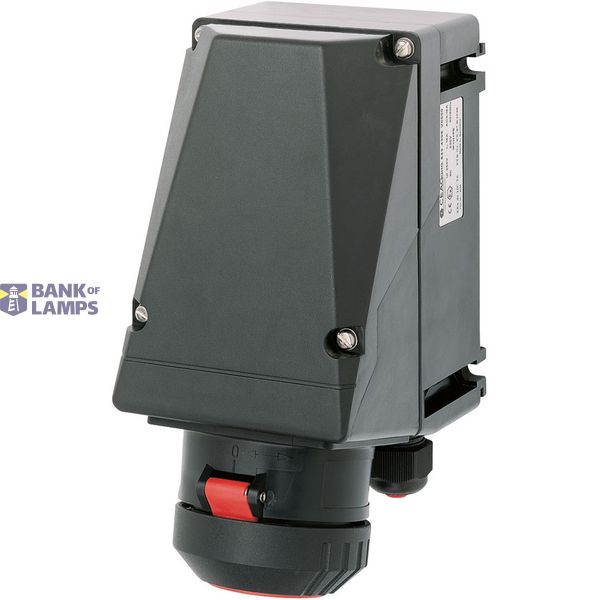

Ex-Wall socket, for zone 1/21, 16A-5Pol-6h / 240 V / 415 V image 2

Ex-Wall socket, for zone 1/21, 16A-5Pol-6h / 240 V / 415 V image 3

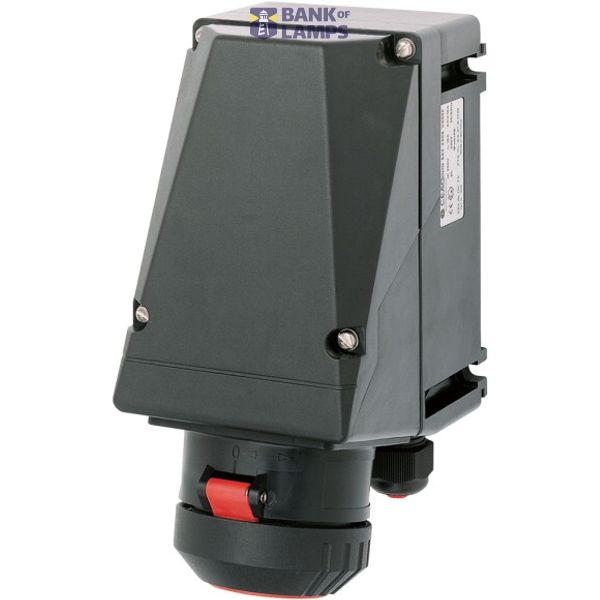

Ex-Wall socket, for zone 1/21, 16A-5Pol-6h / 240 V / 415 V image 4

Ex-Wall socket, for zone 1/21, 16A-5Pol-6h / 240 V / 415 V

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Wall socket, for zone 1/21, 16A-5Pol-6h / 240 V / 415 V
Brand	EATON
ETIM	EC000016
Nominal current	16 A
Model	Base unit and cover
Switch	Mechanical locking
Ex-class	IIC
Number of poles	5
Housing material	Plastic
Surface treatment contacts	Untreated
Mounting direction	Vertical
Contact material	Other
For Ex-zone gas	1, 2
Clock hour position	6 h
Identification colour	Red
Voltage according to EN 60309-2	400 V (50+60 Hz) red
For Ex-Zone dust	21, 22

Packing details

Packing level 1

4250217426841

Description

Ex-Wall socket 16A-5P-6H/240/415V;Cable entry: 2x Metall Thread M20 mit Ex-Screw cap plastic;Enclosurematerial: Polyamide Polyamide;Voltage: up to 690 V AC;Frequency: up to 400 Hz;Rated current: 16 A;Rated breaking capacity AC3 according to EN 60947-3: Ue 500 V / Ie 16 A;Marking according to 2014/34/EU: Ex II 2 G Ex eb IIC T6 / Ex II 2 D Ex IIIC T80 Db;EC type-examination certificate: Wall socket; Plug and Coupler: BVS 17 ATEX E 053 X;Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x B x H): 236 x 110 x 147 mm;Weight: 1.8 kg;Protection class: I;Degree of protection according to EN 60529: IP66
