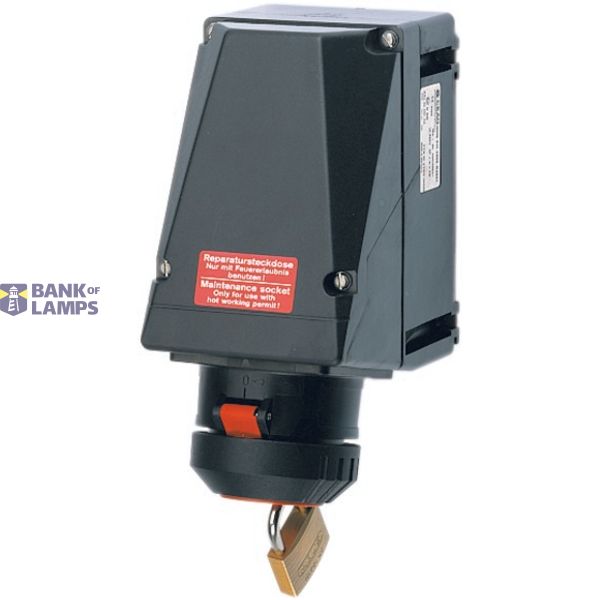

Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 1
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 2
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 3

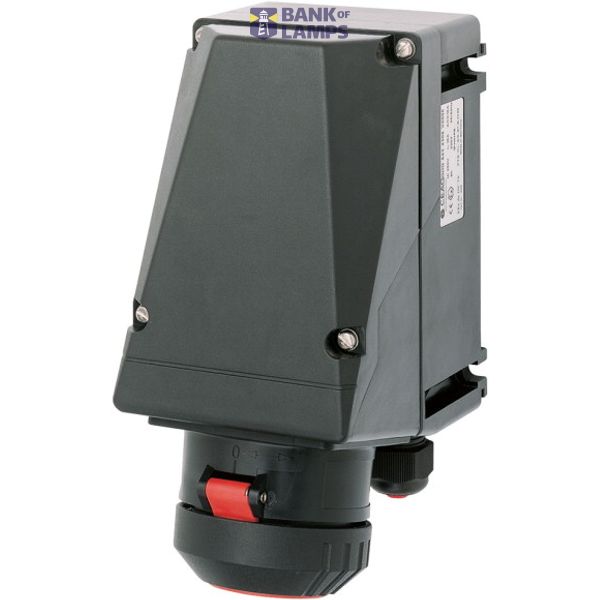

Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 4
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 5
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 6
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 7

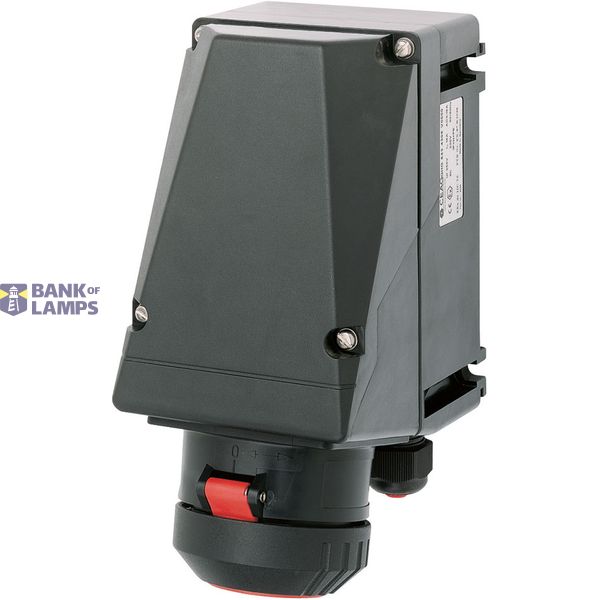

Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 8
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V image 9
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 1
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 2
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 3
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 4
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 5
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 6
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 7
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 8
Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V thumbnail 9
EATON

Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Wall socket, for zone 1/21, 16A-4Pol-6h / 415 V
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 4
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400-440 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217426773

Description

Ex-Wall socket 16A-4P-6H/415V;Cable entry: 1x plastic-Cable entry M25 for Ø 8 - 17 mm; 1 x M25 Ex-Screw cap;Enclosurematerial: Polyamide Polyamide;Voltage: up to 690 V AC;Frequency: up to 400 Hz;Rated current: 16 A;Rated breaking capacity AC3 according to EN 60947-3: Ue 690 V / Ie 16 A;Marking according to 2014/34/EU: Ex II 2 G Ex eb IIC T6 / Ex II 2 D Ex IIIC T80 Db;EC type-examination certificate: Wall socket; Plug and Coupler: BVS 17 ATEX E 053 X;Permissible ambient temperature: -20 °C up to +55 °C;Dimensions (L x B x H): 236 x 110 x 147 mm;Weight: 1.8 kg;Protection class: I;Degree of protection according to EN 60529: IP66
