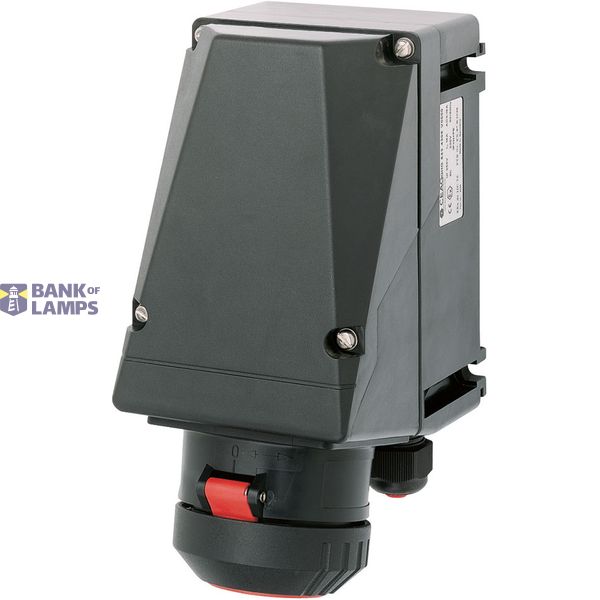

Ex-Wall socket, 20A-5Pol-7H image 1
Ex-Wall socket, 20A-5Pol-7H image 2

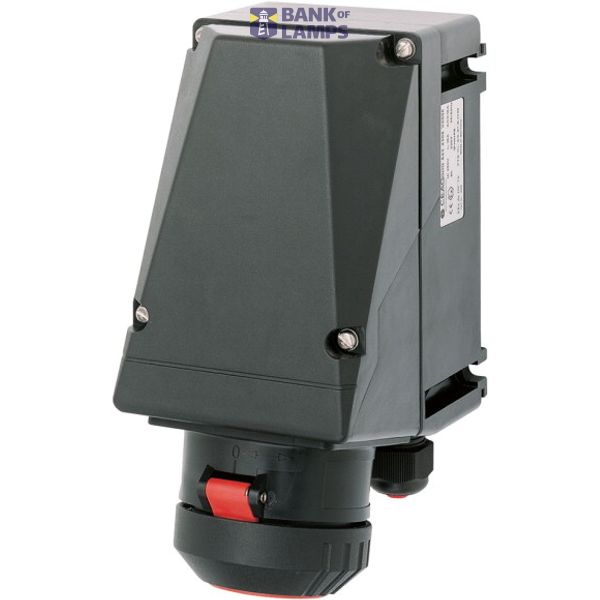

Ex-Wall socket, 20A-5Pol-7H image 3
Ex-Wall socket, 20A-5Pol-7H image 4
Ex-Wall socket, 20A-5Pol-7H thumbnail 1
Ex-Wall socket, 20A-5Pol-7H thumbnail 2
Ex-Wall socket, 20A-5Pol-7H thumbnail 3
Ex-Wall socket, 20A-5Pol-7H thumbnail 4
EATON

Ex-Wall socket, 20A-5Pol-7H

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Wall socket, 20A-5Pol-7H
Brand EATON
ETIM EC000016
Nominal current 20 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 5
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 7 h
Identification colour Red
Voltage according to EN 60309-2 Other
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217437144

Description

Ex-Wall socket 20A-5Pol-7H; Variant: 7 Clock;Rated voltage: 250 V AC 50 Hz / 60 Hz; Number of poles: 3 polig; Rated current: 16 A; Protection class: I; Permissible ambient temperature: -20 °C till +55 °C;Enclosure material: Polyamid; Enclosure colour: Black;Entries: 2x M25 Thread (Metal) with 1x M25 Blind plug (Plastic) and 1x Adapter M25 auf 3/4z NPT (Metal)
