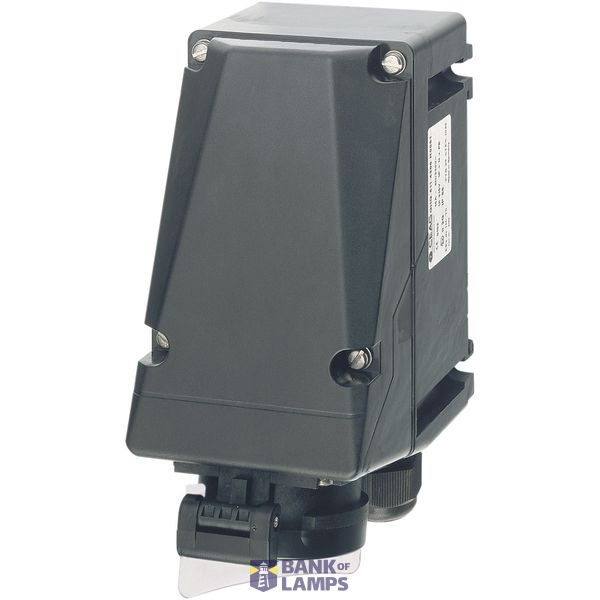

Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 image 5

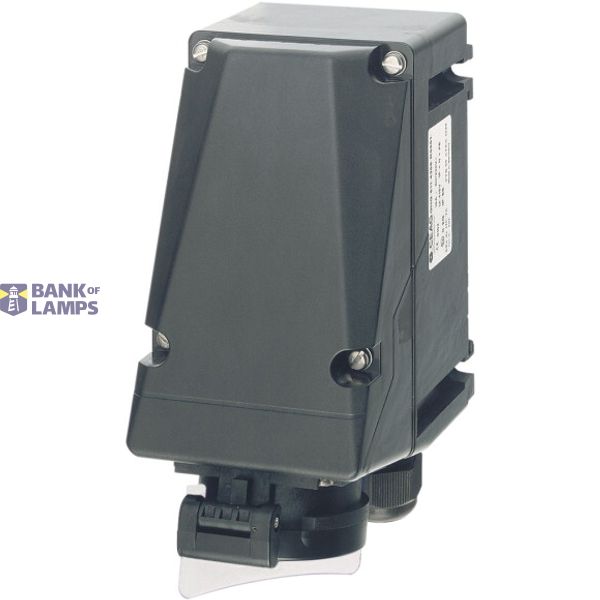

Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 image 6
Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 thumbnail 1
Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 thumbnail 2
Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 thumbnail 3
Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 thumbnail 4
Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 thumbnail 5
Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21 thumbnail 6
EATON

Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-wall socket, 16A-2Pol-12H/42V, 1x M25 cable gland, zone 1/21
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 2
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 12 h
Identification colour White
Voltage according to EN 60309-2 40-50 V (50+60 Hz) white
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217402685

Description

Product: Ex-wall socket;E-Zone: Zone 1; Zone 21; Zone 2; Zone 22;Amperage: 16A;Number of poles: 2-pol;Voltage: 42V;Variant: 12h;Entries: 1x M25;
