EATON

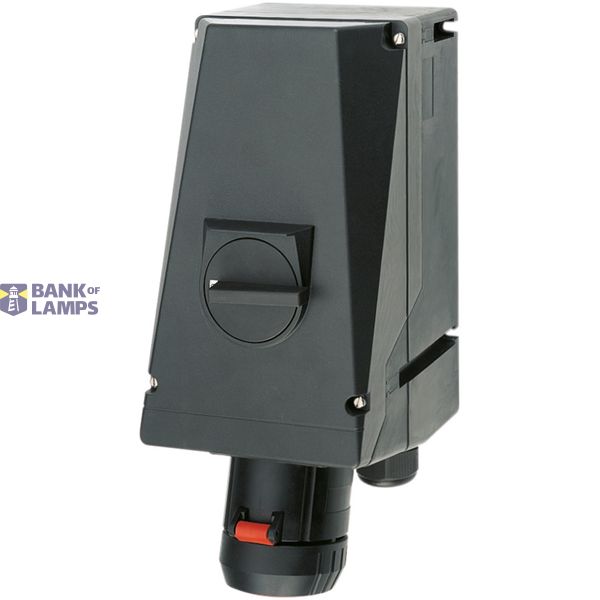

Ex-wall socket, 125A-5Pol-6H/380-415V, 2x M63 cable gland, zone 1/21

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-wall socket, 125A-5Pol-6H/380-415V, 2x M63 cable gland, zone 1/21
Brand EATON
ETIM EC000016
Nominal current 125 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 5
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250959903846

Description

Produkt: Ex-wall socket;Ex-Zone: Zone 1; Zone 21; Zone 2; Zone 22;Amperage: 125A;Number of poles: 5-pol;Voltage: 380V - 415V;Variant: 6h;Entries: 2x M63 cable gland
