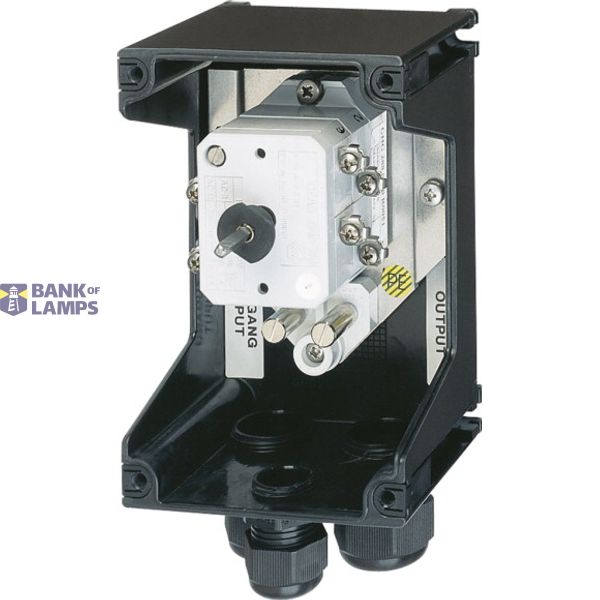

Ex-Safety switch 20A, 4-pole, Emergency Stop

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Safety switch 20A, 4-pole, Emergency Stop
Brand	EATON
ETIM	EC000522

Packing details

Packing level 1

4250217410451

Description

Product: Ex-Safety switch Emergency Stop; Rated current: 20A;Application area: Zone 1, Zone 21, Zone 2, Zone 22;Content: 4-pole;Auxillary contact: 1x Normally open & 1x Normally close;Cable gland: 2x M32 & 1x M25;Material: Polyamide;Degree of protection: IP66 (EN 60529);Protection class: I;Permissible ambient temperature: -20°C up to +40°C;Frequency: 50Hz/60Hz;Connecting terminals: 2x 4mm² or 2x 6mm²-Cable lug (Main contact), 2x 0,5mm² up to 2,5mm² (Auxillary contact);Padlocking facility: triple in OFF-position;
