EATON

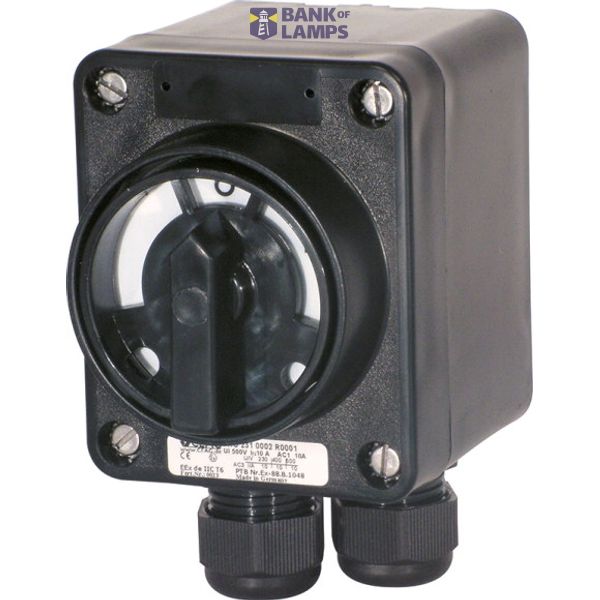

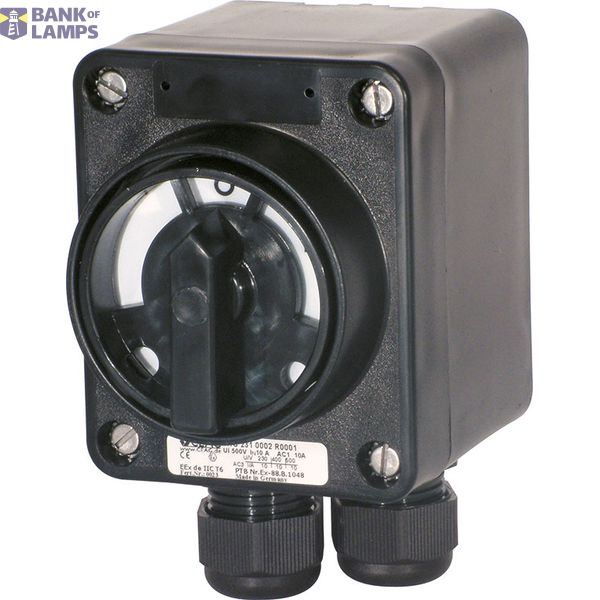

Ex-safety switch 10A 3-Pole for zone 1/21, Variant: Standard, Cable entry: 1x M20 + 2x M25

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-safety switch 10A 3-Pole for zone 1/21, Variant: Standard, Cable entry: 1x M20 + 2x M25
Brand EATON
ETIM EC000522

Packing details

Packing level 1 4250217403026

Description

Ex-safety switch 10A 3-Pole for zone 1/21; Variant: Standard;Rated Voltage: 500V AC;Rated Current: 10A;Frequency: 50/60Hz;Number of poles: 3-pole;Auxillary contacts: 1x NO;Terminals: 2x 1,5mm² - 2,5mm² each main contact, 2x 0,5mm² - 2,5mm² each auxillary contact;Degree of Protection: IP66;Protection class: I;Permissible ambient temperature: -20°C up to +40°C; Enclosure colour: Black;Enclosure material: Polyamide;Padlocking facility: 3 times in OFF-postion; Cable Entry: 1x M20 Cable gland (Plastic) + 1x M25 Cable gland (Plastic)
