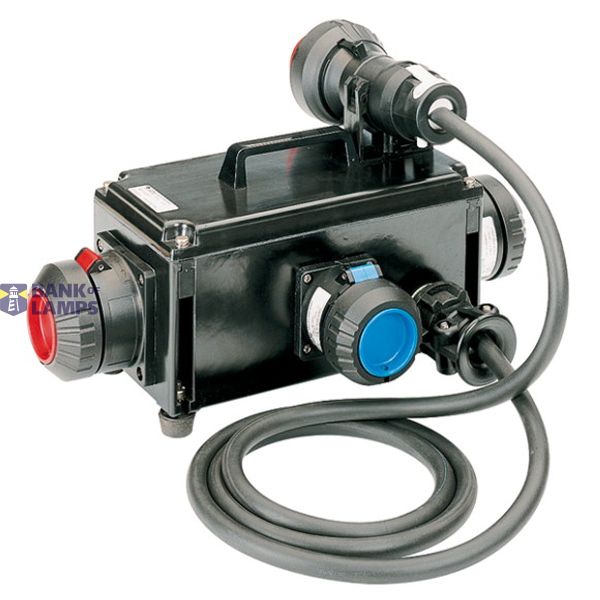

Ex-portable distribution, 346V-415V, 2x socket 16 A 3-pol/ 1x socket 16 A 5-pol, zone 1
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-portable distribution, 346V-415V, 2x socket 16 A 3-pol/ 1x socket 16 A 5-pol, zone 1 |
| Brand | EATON |
| ETIM | EC000379 |
| Surface treatment contacts | Galvanized |
| Handling | Portable |
| Contact material | CuZn |
| Degree of protection (IP) | IP66 |
| Military model | No |
Packing details
| Packing level 1 | 4250959902535 |
Other Technical data
| Colour | Other |
| Width | 420 mm |
| Height | 219 mm |
| Depth | 212 mm |
| Number of socket outlets with protective contact (type F) | 0 |
| Cable length | 2 m |
| Protection | None |
| Housing material | Plastic |
| Leakage current type | Other |
| Earth leakage switch | None |
| CEE socket outlet 16 A | 3x16A xp xxxV |
| CEE socket outlet 32 A | None |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Other fixtures and/or empty locations | 0 |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 0 |
| Type of mains connection | CEE 16 A |
| Number of socket outlets Swiss standard type 13 | 0 |
| Number of socket outlets Swiss standard type 15 | 0 |
| Number of socket outlets Swiss standard type 23 | 0 |
| Number of socket outlets Swiss standard type 25 | 0 |
| Number of socket outlets Danish standard (earthing pin) | 0 |
| Number of poles mains connection | 5 |
| Diameter cable entry | M32 |
Description
Product: Ex-portable socket distribution,Ex-Zone: Zone 1, Zone 2,Voltage: 346V - 415V,Internals: 2x socket 16A 3-pol and 1x socket 16A 5-pol
