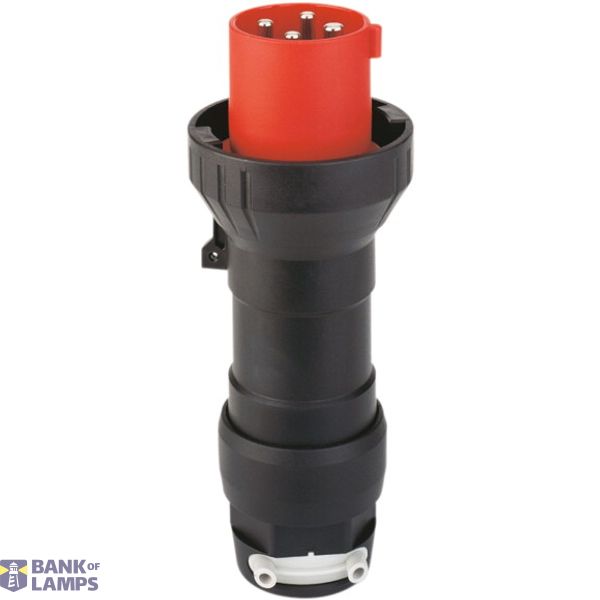

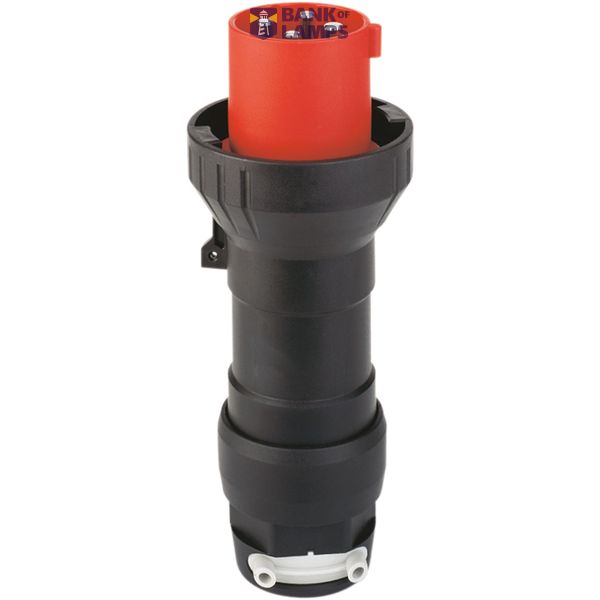

Ex-Plug for zone 1/21, Variant: 63A-4P-6H, Voltage: 380V - 415V
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Plug for zone 1/21, Variant: 63A-4P-6H, Voltage: 380V - 415V |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000017 |
| Mains voltage | 415 V |
| Ex-class | IIC |
| Number of poles | 4 |
| Housing material | Plastic |
| Surface treatment contacts | Untreated |
| Contact material | Other |
| For Ex-zone gas | 1, 2 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| For Ex-Zone dust | 21, 22 |
Packing details
| Packing level 1 | 4250217427367 |
Other Technical data
| Nominal current | 63 A |
| Model | Plug |
| Cable entry | Straight |
| Protective contact | Yes |
| Clock hour position | 6 h |
| Identification colour | Red |
Description
Ex-Plug 63A-4P-6H/415V;Cable entry: Ø 19 - 34 mm;Enclosurematerial: Polyamide;Voltage: up to 690 V AC;Frequency: up to 400 Hz;Rated current: 63 A;Marking according to 2014/34/EU: Ex II 2G Ex db eb IIC / IIB T5 / Ex II 2D Ex tb IIIC T80 Db;EC type-examination certificate: BVS 17 ATEX E 073 X;Permissible ambient temperature: -55 °C up to +55 °C;Dimensions (L x B x H): 272 x Ø 210 mm;Weight: 0.75 kg;Protection class: I;Degree of protection according to EN 60529: IP66
