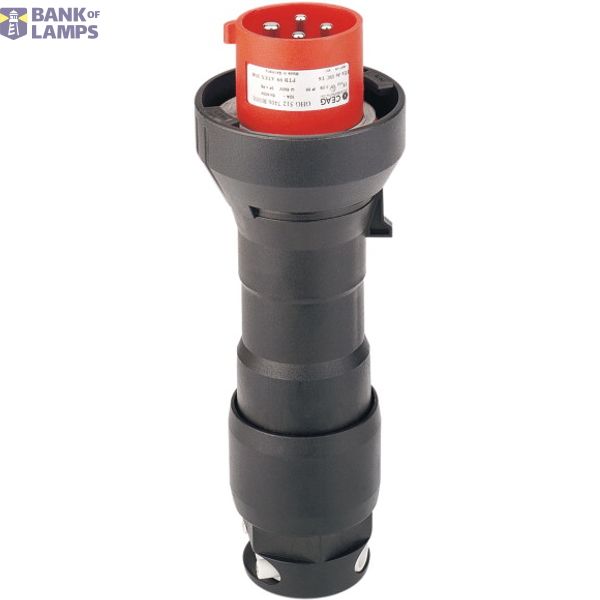

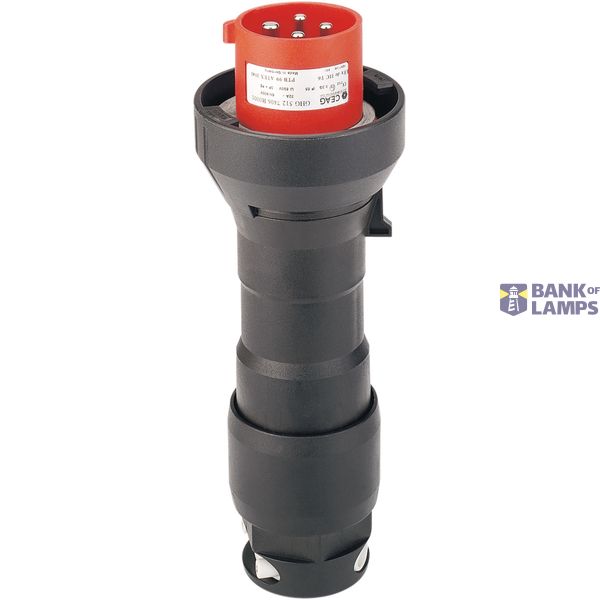

Ex-Plug for zone 1/21, Variant: 32A-4P-9H, Voltage: 200V - 250V

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Plug for zone 1/21, Variant: 32A-4P-9H, Voltage: 200V - 250V
Brand	EATON
ETIM	EC000017
Mains voltage	250 V
Ex-class	IIC
Number of poles	4
Housing material	Plastic
Surface treatment contacts	Untreated
Contact material	Other
For Ex-zone gas	1, 2
Voltage according to EN 60309-2	230 V (50+60 Hz) blue
For Ex-Zone dust	21, 22

Packing details

Packing level 1

4250217427190

Other Technical data

Nominal current	32 A
Model	Plug
Cable entry	Straight
Protective contact	Yes
Clock hour position	9 h
Identification colour	Blue

Description

Ex-Plug 32A-4P- 9H/250V;Cable entry: Ø 17 - 28 mm;Enclosurematerial: Polyamide;Voltage: 690 V AC;Frequency: up to 400 Hz;Rated current: 32 A;Marking accd. 2014/34/EU: Ex II 2 G Ex de (ia) IIC T6 / Ex II 2 D Ex tD A21 IP66 T60 °C;EC type-examination certificate: Wall socket;Plug and Coupler: PTB 99 ATEX 1041;Permissible ambient temperature: -20 °C up to 40 °C;Dimensions (L x B x H): 249 x Ø 95 mm;Weight: 0.7 kg;Protection class: I;Degree of protection according to EN 60529: IP66
