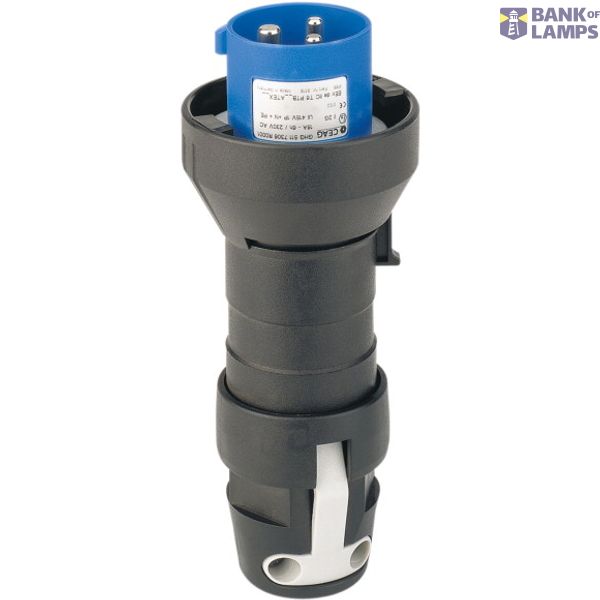

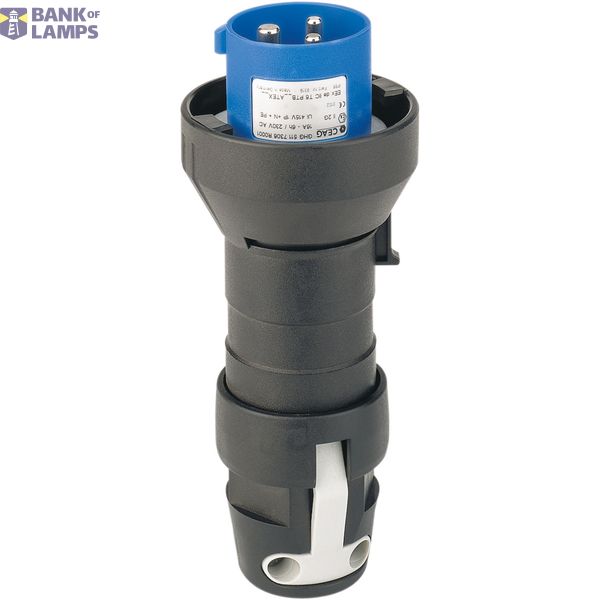

Ex-Plug for zone 1/21, Variant: 16A-4P-6H, Voltage: 380V - 415V

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Plug for zone 1/21, Variant: 16A-4P-6H, Voltage: 380V - 415V
Brand	EATON
ETIM	EC000017
Mains voltage	415 V
Ex-class	IIC
Number of poles	4
Housing material	Plastic
Surface treatment contacts	Untreated
Contact material	Other
For Ex-zone gas	1, 2
Voltage according to EN 60309-2	400 V (50+60 Hz) red
For Ex-Zone dust	21, 22

Packing details

Packing level 1

4250217426896

Other Technical data

Nominal current	16 A
Model	Plug
Cable entry	Straight
Protective contact	Yes
Clock hour position	6 h
Identification colour	Red

Description

Ex-Plug 16A-4P-6H/415V;Cable entry: Ø 8 - 21 mm;Enclosurematerial: Polyamide;Voltage: 690 V AC;Frequency: up to 400 Hz;Rated current: 16 A;Marking according to 2014/34/EU: Ex II 2 G Ex db eb IIC/IIB+H2 T6 / Ex II 2 D Ex IIIC / IIIB T80°C Db;EC type-examination certificate: Wall socket;Plug and Coupler: BVS 17 ATEX E 053 X;Permissible ambient temperature: -55 °C up to +55 °C;Dimensions (L x B x H): 192 x Ø 76.5 mm;Weight: 0.35 kg;Protection class: I;Degree of protection according to EN 60529: IP66
