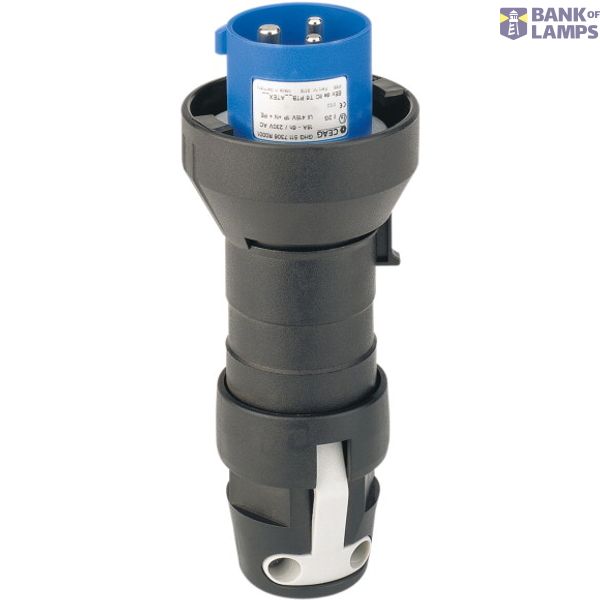

Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V image 3
Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V image 4

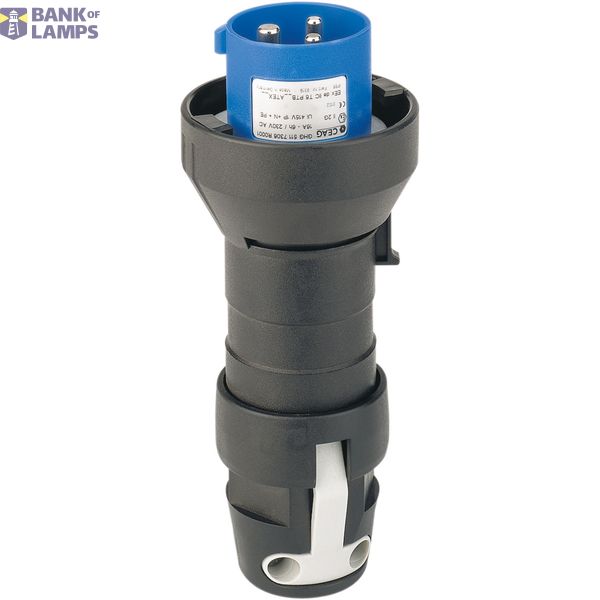

Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V image 5
Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V thumbnail 1
Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V thumbnail 2
Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V thumbnail 3
Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V thumbnail 4
Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V thumbnail 5
EATON

Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Ex-Plug for zone 1/21, Variant: 16A-3P-6H, Voltage: 200V - 250V
Brand EATON
ETIM EC000017
Mains voltage 250 V
Ex-class IIC
Number of poles 3
Housing material Plastic
Surface treatment contacts Untreated
Contact material Other
For Ex-zone gas 1, 2
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250217426872

Other Technical data

Nominal current 16 A
Model Plug
Cable entry Straight
Protective contact Yes
Clock hour position 6 h
Identification colour Blue

Description

Ex-Plug 16A-3P-6H for zone 1/21; Voltage: 415 V AC; Rated current: 16A; Number of poles: 3 pole; Content: 6 Clock; Permissible ambient temperature: -55 °C up to +55 °C; Protection class: I; Degree of protection: IP66; Enclosure material: Polyamide; Enclosure color: Black; Cable entry: Ø 8 - 18mm
