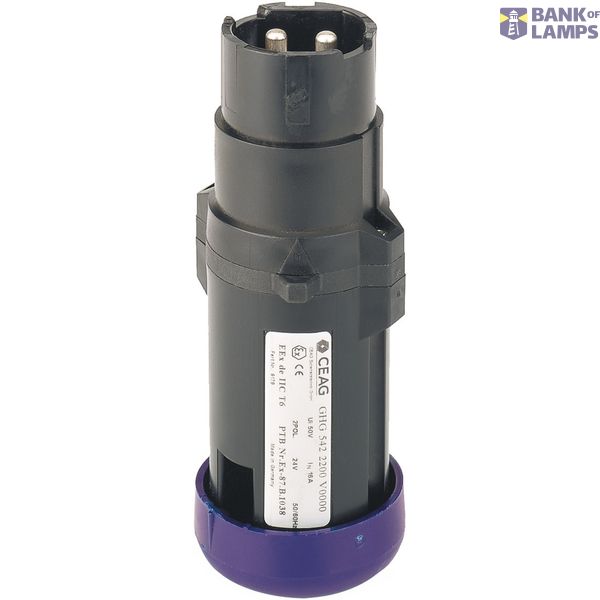

Ex-Plug for zone 1/21, Variant: 16A-2P-12H-42 V image 1

Ex-Plug for zone 1/21, Variant: 16A-2P-12H-42 V image 2

Ex-Plug for zone 1/21, Variant: 16A-2P-12H-42 V image 3

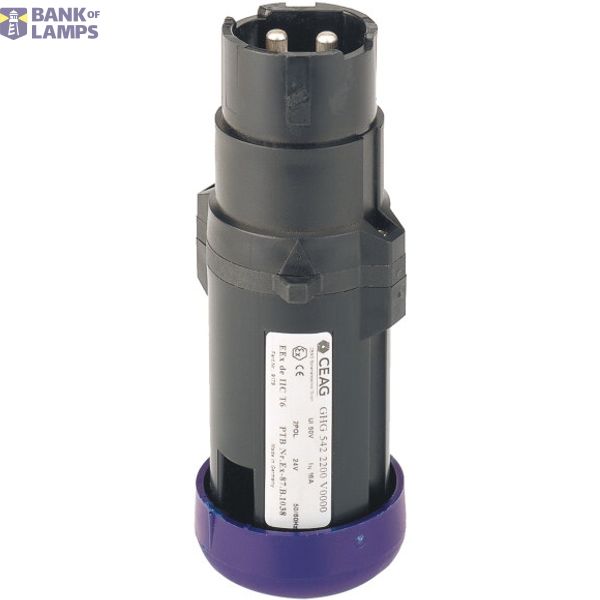

Ex-Plug for zone 1/21, Variant: 16A-2P-12H-42 V image 4

Ex-Plug for zone 1/21, Variant: 16A-2P-12H-42 V

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Ex-Plug for zone 1/21, Variant: 16A-2P-12H-42 V
Brand	EATON
ETIM	EC000017
Mains voltage	42 V
Ex-class	IIC
Number of poles	2
Housing material	Brass
Surface treatment contacts	Untreated
Contact material	Other
For Ex-zone gas	1, 2
Voltage according to EN 60309-2	40-50 V (50+60 Hz) white
For Ex-Zone dust	None

Packing details

Packing level 1

4250217437939

Other Technical data

Nominal current	16 A
Model	Plug
Cable entry	Straight
Protective contact	Yes
Clock hour position	12 h
Identification colour	White

Description

Ex-Plug 16A-2P-42V-12H;Cable entry: Ø 9 - 17 mm;Enclosurematerial: Polyamide;Voltage: 50 V AC;Frequency: up to 400 Hz;Rated current: max. 16 A;Marking according to 2014/34/EU: Ex II 2 G Ex de [ia] IIC T6/T5;EC type examination certificate: PTB 99 ATEX 1039;Permissible ambient temperature: -25 °C up to 45 °C;Dimensions (L x B x H): 145 x Ø 59 mm;Weight: 0.35 kg;Protection class: I;Degree of protection according to EN 60529: IP54
