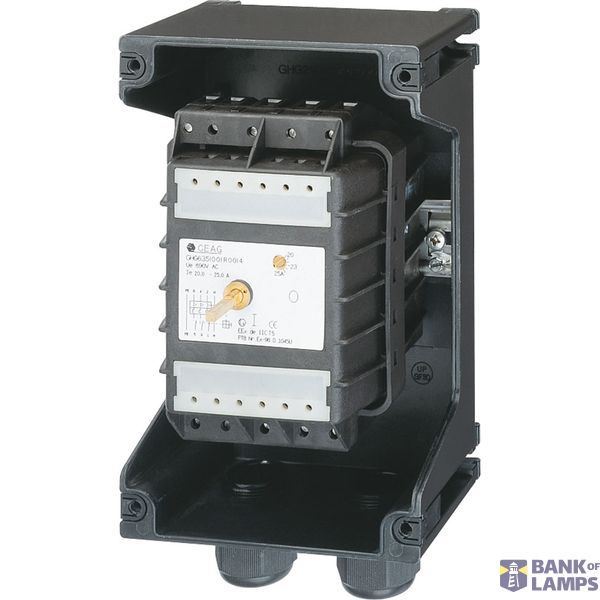

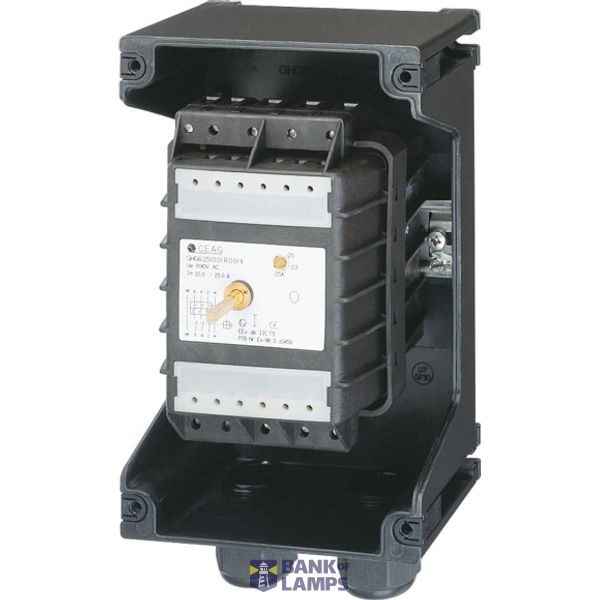

Ex-Motor protection switch standard for zone 1 / 21, Current range 1,0 A - 1,6 A
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Motor protection switch standard for zone 1 / 21, Current range 1,0 A - 1,6 A |
| Brand | EATON |
| ETIM | EC000074 |
| Rated permanent current Iu | 1.6 A |
| Number of poles | 5 |
| Rated operating voltage | 400 V |
| Overload release current setting | 1-1.6 A |
| Degree of protection (IP) | IP66 |
| Adjustment range undelayed short-circuit release | 1-1.6 A |
Packing details
| Packing level 1 | 4250217428715 |
Other Technical data
| Width | 140 mm |
| Height | 225 mm |
| Depth | 156 mm |
| With integrated auxiliary switch | Yes |
| With integrated under voltage release | Yes |
| With thermal protection | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Type of control element | Push button |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | Yes |
| Device construction | Other |
Description
Ex-Motor protection switch standard for Zone 1 / 21, Current range: 1,0 A - 1,6 A,Number of poles: 3-pole, Auxillary contacts: no, Cable entry: 2 x M 25 Cable gland (plastic), Housingmaterial: glass fiber reinforced plastic,
