Ex-Mast Linear light fitting for zone 2/21, Variant: nLLM 08018/18 1/3-1K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Ex-Mast Linear light fitting for zone 2/21, Variant: nLLM 08018/18 1/3-1K |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 188 mm |
| Length | 1.06 mm |
| Height/depth | 130 mm |
| Lamp type | Fluorescent lamp |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Rated luminous flux according to IEC 62722-2-1 | 2.7 lm |
Packing details
| Packing level 1 | 4250217412530 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 18 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -25-55 °C |
| Light distributor | Reflector |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Description

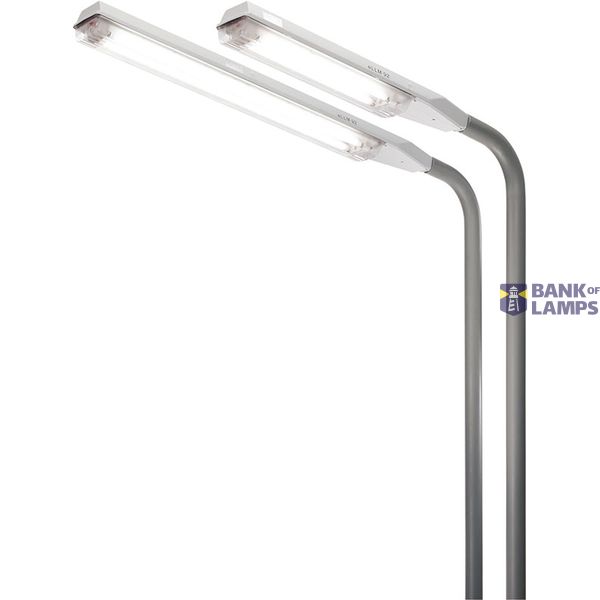

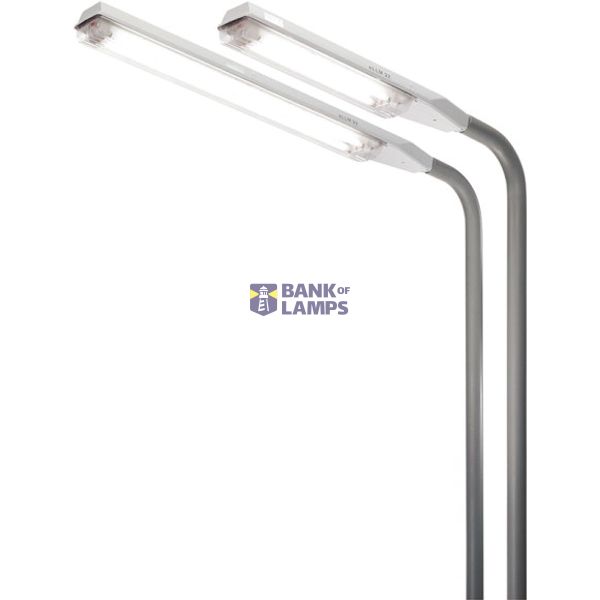

Ex-Mast linear light fitting for zone 2/21; Variant: nLLM 08018/18 1/3-1K; Voltage: 220 V - 240 V AC and 220 V - 240 V DC; Frequency: 50 Hz / 60 Hz; Through wiring: No; Terminalpoints: 1x 3 Terminal points; Lamp: 2x T26 / 18 W (not included); Lamp base: G13; Lumen: 2700 lm; Degree of protection: IP66; Protection class: I; Light output ratio: 78%; Weight: 3,6 kg; Dimensions: 760 mm x 188 mm x 130 mm; Protective cover material: Polycarbonate; Enclosure material: Glass-fibre reinforced polyester; Enclosure color: light gray (RAL 7035); Cable entry: 2x M25 Thread (Plastic) with 2x M25 Cable gland (Plastic)
