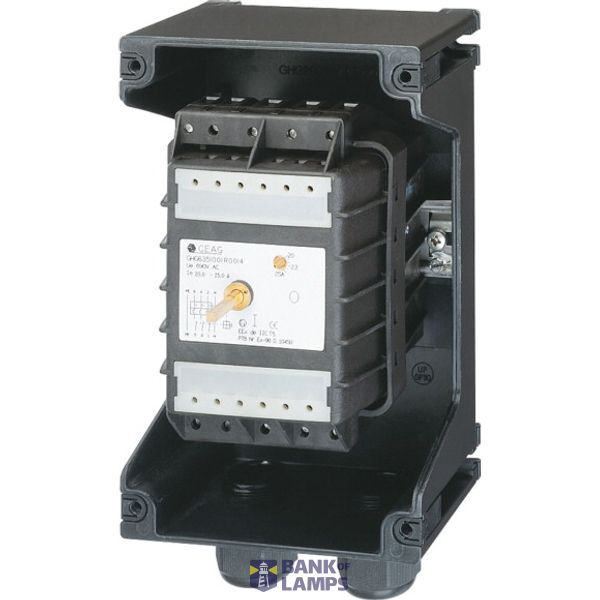

EX-MANUAL MOTOR STARTER 635 16 A - 20 A

Name: EX-MANUAL MOTOR STARTER 635 16 A - 20 A
Brand: EATON
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	EX-MANUAL MOTOR STARTER 635 16 A - 20 A
Brand	EATON
ETIM	EC000074
Rated permanent current Iu	20 A
Number of poles	5
Rated operating voltage	400 V
Overload release current setting	16-20 A
Degree of protection (IP)	IP66
Adjustment range undelayed short-circuit release	16-20 A

Packing details

Packing level 1

4250217428784

Other Technical data

Width	140 mm
Height	225 mm
Depth	156 mm
With integrated auxiliary switch	Yes
With integrated under voltage release	Yes
With thermal protection	Yes
Type of electrical connection of main circuit	Screw connection
Type of control element	Push button
Switch off technique	Thermomagnetic
Phase failure sensitive	Yes
Device construction	Other

Description

Ex-Manual Motor Starter 25 A, 16.0 A - 20.0 A, Standard (without cable) für Zone 1/21, GHG 635w/o UVR, Aux. contact: none, 2 x M32 cable gland, direct drilled enclosure
